JEC-PTU-760 Medium-Load Dual-Side Pan Tilt Unit/Head

The JEC-PTU-760 gives system integrators a motorized platform for assembling visible cameras, thermal imagers and auxiliary sensors around a shared pan-and-tilt mechanism. Its T-type structure separates the payload into side-mounted cabins, allowing the optical arrangement to match the observation task. Cameras and other sensing devices are selected as part of the project configuration; the standalone PTU does not define the complete imaging system.

Payload capacity is 3 kg per cabin, with 6 kg total available across two cabins. The dual-cabin figure is the combined capacity, not the allowance for each side. Selection should include the weight of housings, mounting brackets, connectors and moving cables, together with the sensor modules.

JEC-PTU-760 dual-side configuration for visible, thermal and other lightweight sensor payloads.

Controlled Motion for Observation and Repositioning

DMD drive control and precision spur gearing support slow viewing-angle adjustments and movement between observation points. Closed-loop speed and position control help the platform follow the commanded motion. The position-holding function can restore the commanded position after displacement caused by an external force. Continuous pan rotation and a wide tilt range support observation in different directions from one installation point.

For long-zoom optics, evaluate motion with the intended payload fitted. Balance, rotational inertia, cable resistance and controller response affect the image seen by the operator. A bare-unit demonstration cannot establish the performance of every completed camera system.

Outdoor Integration for Industrial Sites

The aluminium-alloy enclosure and IP66 protection support outdoor industrial monitoring. Border observation points, coastal facilities, forest watch stations and perimeter installations can use the platform to position selected cameras and sensors. The required observation distance depends on the optics, detector, target and site conditions, rather than the pan-tilt mechanism alone.

For exposed locations, review the mounting structure, wind area, connectors, drainage and cable sealing. Coastal installations also need a corrosion and surface-treatment review. The enclosure rating does not by itself establish salt-spray resistance or guarantee the environmental protection of separately installed payload equipment.

Control Interfaces and Optional Cabin Functions

RS485 and RS422 communication with Pelco-D protocol provide a control interface for integration with surveillance controllers. Confirm command support, wiring, communication settings and the required position-feedback format during system design. Camera video transmission and PTU motion control should be specified separately so that the interface plan covers both functions.

Optional cabin functions may include wipers, auxiliary lighting, GPS or edge computing. Availability depends on the chosen housing and electrical arrangement. Reserve space, power and cabling for each module before finalizing the mechanical layout. Automated tracking requires compatible sensors, processing and control software in the completed system.

Unmanned-vehicle system integration reference. Mobile use requires a separate mounting, payload and vibration assessment.

Prepare Your Payload for Model Selection

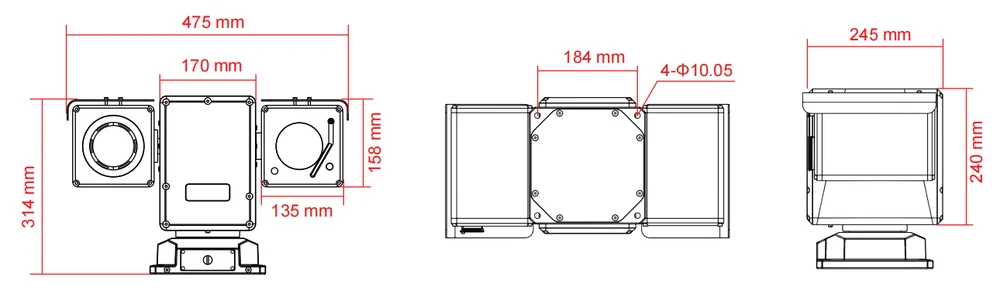

Send the complete payload drawing, weight on each side, center of gravity and mounting-hole layout when requesting a configuration. Include the required movement range, operating speed, supply voltage, control interface and installation environment. These inputs help JEC assess whether the dual-side arrangement suits the project or whether a top-load PTU would be more practical. Review the current model-specific specification and acceptance conditions before ordering, especially when using long lenses, offset housings or installations exposed to vibration.

Applications

• Border Surveillance: Position visible and thermal payloads at fixed observation sites.
• Coastal Observation: Monitor shorelines, port approaches and coastal infrastructure with selected sensors.
• Forest Fire Watch: Support camera positioning at towers and remote monitoring stations.
• Industrial Perimeter Monitoring: Direct multi-sensor payloads toward fences, access points and equipment areas.

Application Video

JEC 760-series camera-system demonstration. The video shows an integrated configuration; the standalone PTU is supplied according to the selected payload and interface requirements.
