Power Substation PTZ Camera Solution

Integrated Solution

Power substations are critical infrastructure sites that require reliable perimeter security, transformer area observation, restricted-area monitoring, and remote operational visibility. Many substations are outdoor, unmanned, or located in remote areas, making fast alarm verification and centralized monitoring especially important.

JECSC Technology provides project-based power substation PTZ camera solutions for utility project contractors, EPC firms, substation security integrators, industrial automation providers, and government or utility procurement teams. Depending on project requirements, the system may include industrial PTZ cameras, thermal PTZ cameras, long-range visible imaging, AI-assisted intrusion detection, and VMS/NVR control room integration.

Comprehensive Approach

A substation surveillance system should not only record video. It should help operators detect events, observe key assets, verify alarms, and respond remotely.

Visible PTZ cameras support wide-area inspection of transformer yards, gates, access roads, and equipment zones. Thermal PTZ cameras may support nighttime monitoring, perimeter verification, and heat-related observation around transformers, cable trenches, or electrical equipment. AI alarm linkage can help detect intrusion, movement, or restricted-area activity. PTZ presets and patrol routes allow operators to inspect multiple areas from one control center.

Core System Architecture

The perception layer may include industrial PTZ cameras, thermal PTZ cameras, long-range PTZ cameras, fixed cameras, multispectral PTZ cameras, perimeter sensors, access control alarms, and environmental or fire detection inputs where required.

Network Transmission Layer

The network layer connects cameras and sensors to the substation control room or remote utility center through IP networks, fiber transmission, industrial switches, edge devices, and secure communication architecture. For substations, project teams should consider grounding, surge protection, electromagnetic interference, cable routing, and network reliability.

Cloud-Edge & Application Layer

The application layer supports VMS/NVR integration, PTZ control, alarm pop-ups, thermal-visible verification, recording, playback, remote access, multi-site management, and third-party platform integration.

Key Industry Challenges

Power substations face large outdoor equipment areas, high-value assets, restricted access zones, day/night monitoring needs, harsh weather, limited manpower, and integration with existing utility platforms. Fixed cameras alone may not provide enough flexibility for remote verification. A PTZ + thermal solution helps operators inspect wide areas, confirm alarms, and reduce unnecessary site visits.

Recommended Hardware

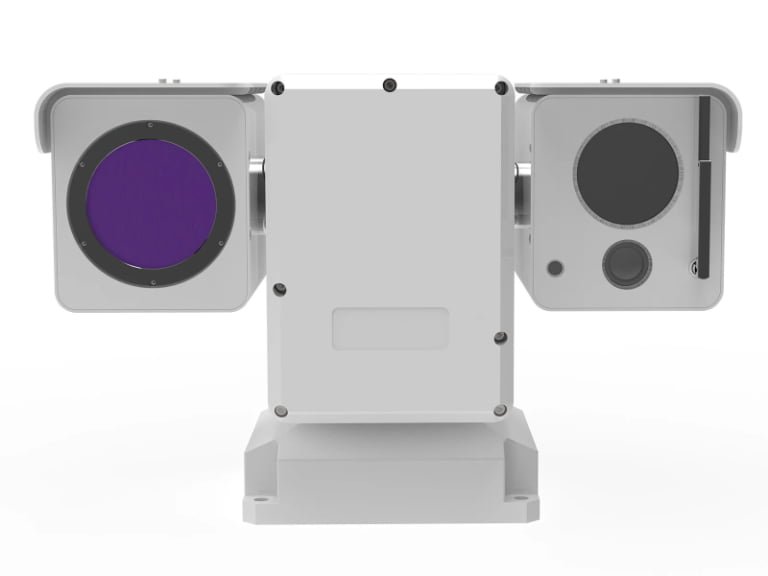

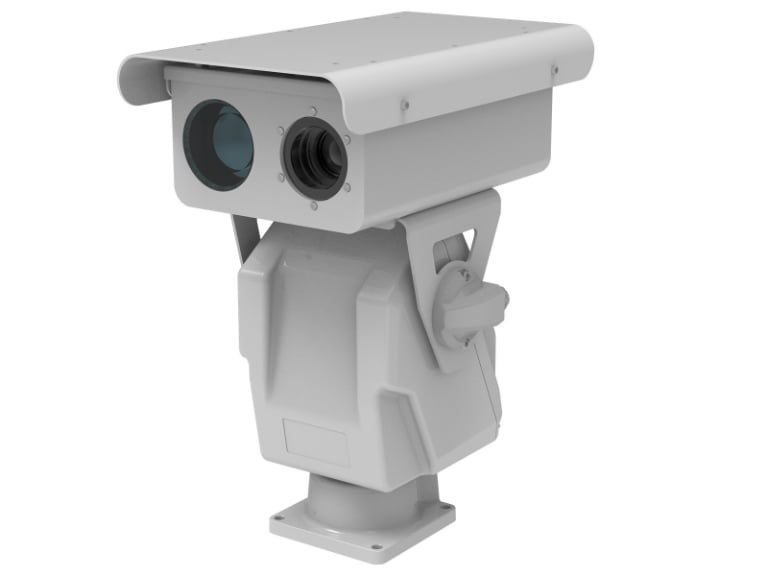

• Thermal PTZ Camera: for transformer area observation, perimeter monitoring, night surveillance, and fire or overheating risk awareness.
• Long-Range PTZ Camera: for outdoor yards, access roads, gates, and large site coverage.

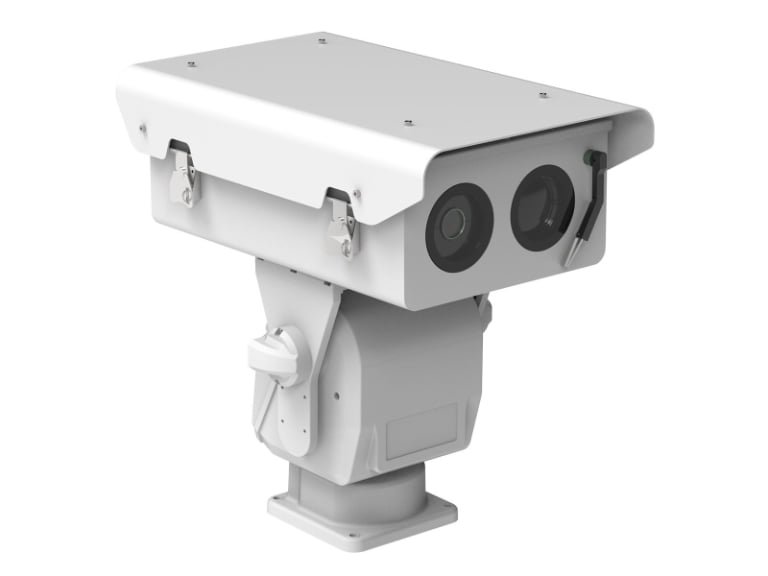

• EO/IR PTZ Camera: for visible detail verification combined with thermal observation.
• Fixed + PTZ Mixed Deployment: fixed cameras cover entrances and key equipment points, while PTZ cameras support wide-area inspection.
• Rugged Outdoor Configuration: housing, cable protection, mounting, grounding, and IP-rated design should be confirmed according to the site environment.

Application Scenarios

• Substation perimeter and fence line monitoring
• Transformer yard observation
• Restricted-area intrusion verification
• Fire and overheating risk monitoring
• Remote unmanned substation surveillance
• Multi-site utility control room monitoring

System Integration Value

JECSC can support integration discussions around ONVIF, VMS/NVR compatibility, RTSP streaming, PTZ control, alarm input/output, AI linkage, thermal alarm settings, and remote control room workflows. Buyers should provide platform requirements, monitoring distance, site drawings, and procurement documentation needs before final configuration.

OEM / ODM & Project Customization

JECSC can discuss project customization for optics, thermal payload, zoom range, PTZ structure, housing, mounting brackets, communication interface, software linkage, alarm logic, branding, datasheets, CAD drawings, API documents, and compliance-related files where applicable.
