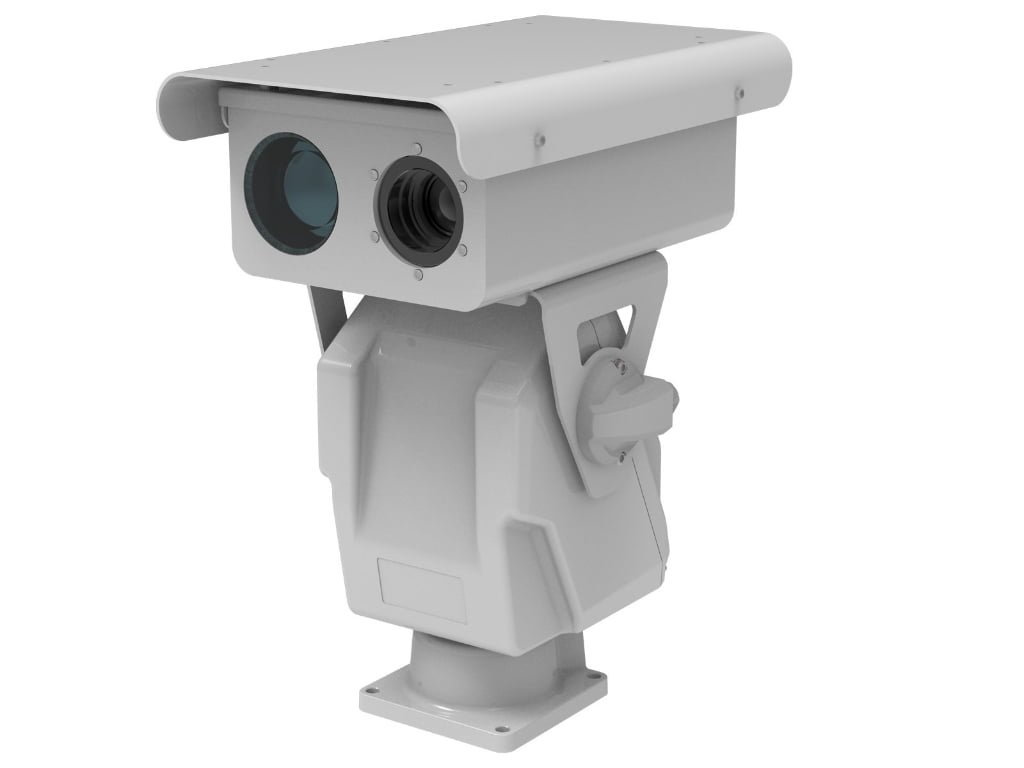

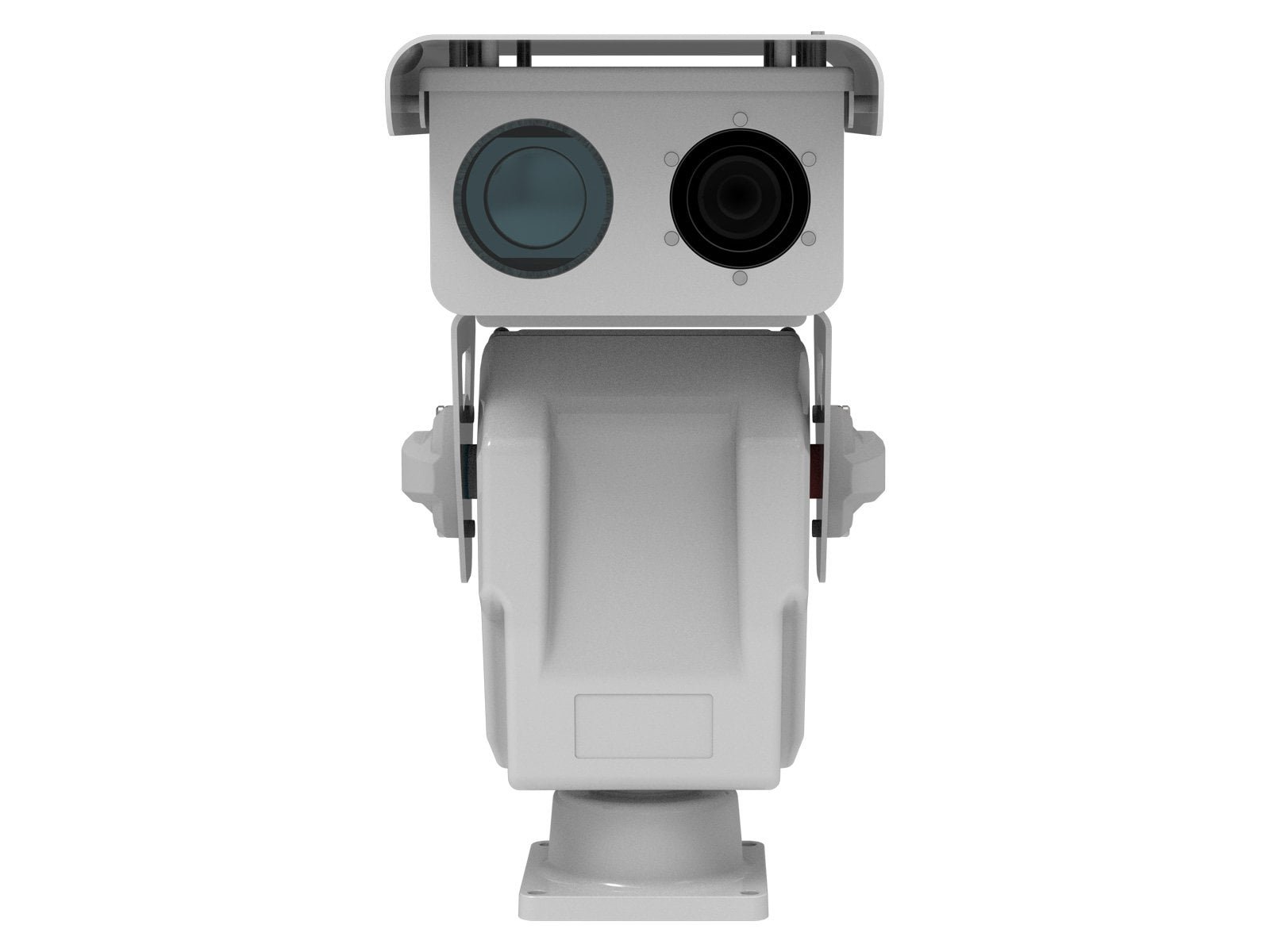

360° Pan Tilt Zoom Surveillance Camera for Flexible Top-Mounted Security Monitoring

Model: JEC-PTZ-2140 Series Surveillance Camera System

The JEC pan tilt zoom surveillance camera is built to help security teams monitor broad outdoor spaces with flexible viewing angles, responsive motion control, and clear long-distance imaging.

As a high-performance pan tilt zoom security camera, it allows operators to scan, track, and inspect multiple zones from a single platform. This solution also works well for users comparing pan tilt CCTV camera options for professional deployments, especially in projects that need durable outdoor surveillance cameras with wider coverage and stronger operational efficiency.

✔ Compact dual-cabin compatible
✔ Multi-sensor fusion architecture
✔ AI intelligent target recognition
✔ All-weather industrial reliability

Key Advantages

01

Wide-area monitoring with pan, tilt, and zoom flexibility

02

Efficient replacement for multi-camera fixed-view coverage

03

Outdoor-ready design for complex surveillance environments

Applications

Border & Coastal Security

Industrial yards and storage areas

Maritime navigation safety

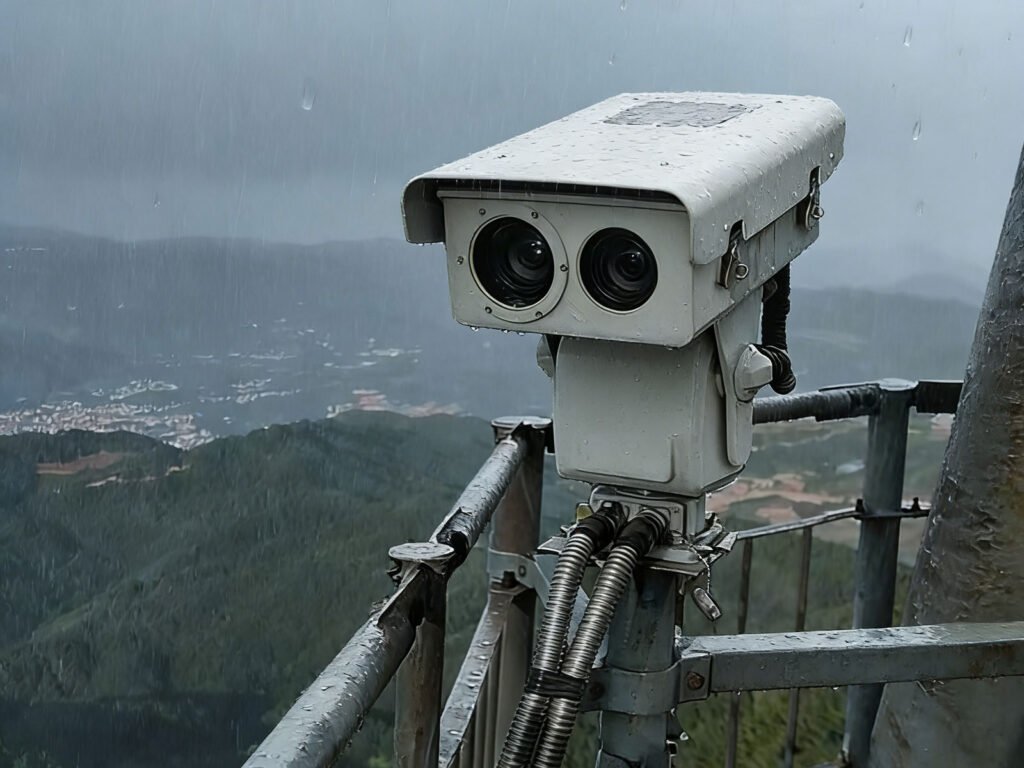

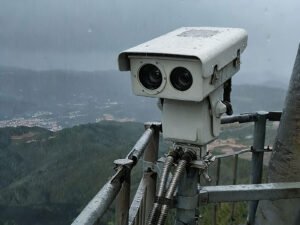

Forest Fire Prevention

Technical Specifications

Model: JEC-PTZ-2140 Series Surveillance Camera System

Pan Tilt Motor

ParameterSpecification
Max dimensionsH 270mm* L 168mm* W 220mm
Transmission formPan with harmonic reducer, tilt with backlash elimination reducer
Power supply voltage24V
Power protectionTVS 6000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4
Rotation rangePan 360° continuous rotation, tilt -70°~+45°
Speed rangePan 0.01° ~90° /s, tilt 0.01° ~18° /s
Power consumption≤5W (Standby), ≤50W (Operation)
Angular resolution<0.01°
Repeated positioning accuracy±0.05°
Protection levelIP66
Operating temperature and humidity-25℃~65℃,<90% RH

Visible Camera

ModuleParameterSpecification
CameraImage Sensor1/1.8” Progressive Scan CMOS
LensFocal Length6.6~264mm, 40x Optical Zoom
LensAperture RangeF1.61-F5.19
Compression StandardVideo CompressionH.265 / H.264 / MJPEG

Thermal Imaging Module

ParameterSpecification
Detector
Detector typeVox Uncooled thermal Detector
Effective Pixels640×512
Pixel size12μm
Spectral range8-14μm
Sensitivity (NETD)≤35 mK @F1.0, 300K
Lens
Lens50mm Electronic Focusing Lens
F ValueF1.0
FOV8.8°X7.0°
Focusing range5M—∞
SealingIP67(front of lens)

Frequently Asked Questions

What is this pan tilt zoom camera designed for?
This model is designed for professional wide-area surveillance where users need accurate rotation, stable motion control, and reliable outdoor operation across demanding scenarios such as fire prevention, border monitoring, and coastal defense.
Is this PTZ security camera suitable for outdoor use?
Yes. The product page specifies an IP66 protection level, all-metal housing, anti-surge capability, and operation in -40℃ to 65℃ environments, making it suitable for all-weather outdoor deployment.
Can this PTZ camera system support intelligent expansion?
Yes. The housing can be configured with optional modules including automatic wipers, automatic lighting, edge computing, and GPS.
What makes this a good industrial PTZ camera for perimeter security?
Its continuous pan, wide tilt range, precise spur gear transmission, fast DMD response, low-power operation, and durable IP66 body make it a practical fit for industrial perimeter and infrastructure surveillance.
