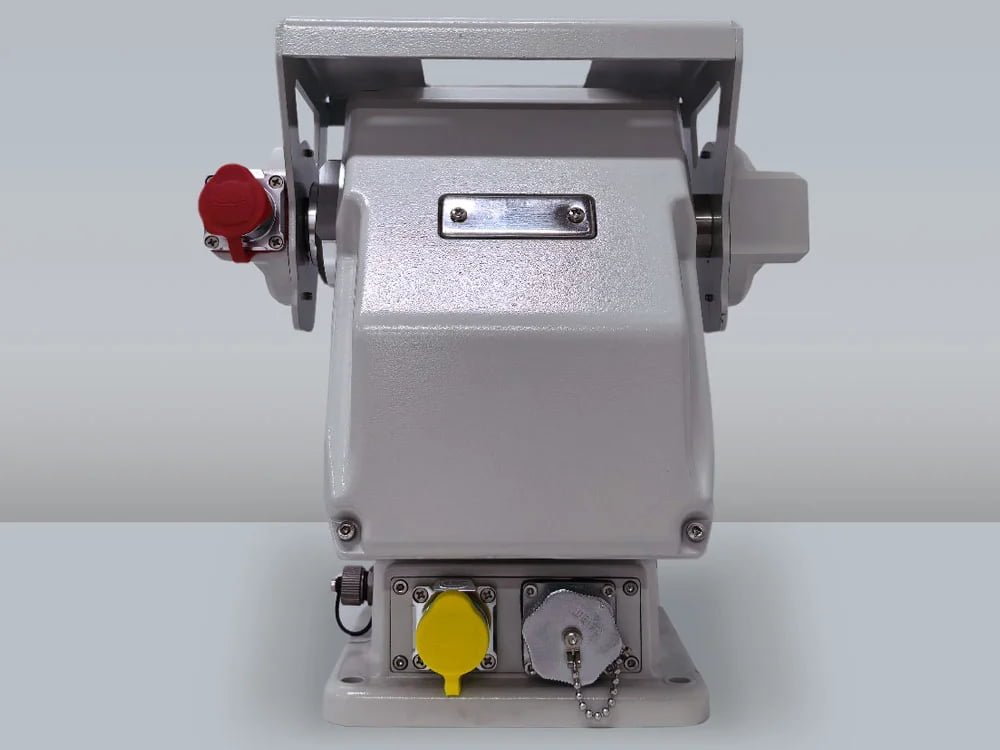

JEC-PTU-2140 10 kg Top-Load Industrial Pan Tilt Unit/Head for Outdoor Monitoring

Model: JEC-PTU-2140 Series

Model: Model: JEC-PTU-2140 Series

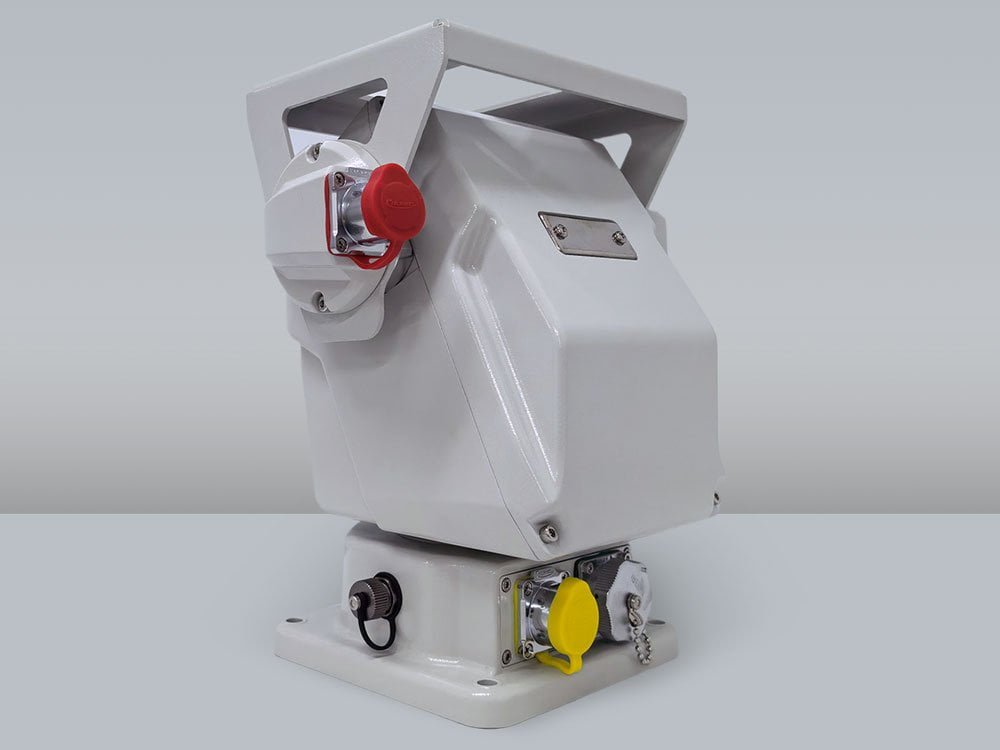

Compact Motion Platform for Short- and Medium-Range Monitoring

The JEC-PTU-2140 is a compact industrial pan-tilt unit designed to carry top-mounted cameras, thermal modules and approved sensor payloads for short- and medium-range monitoring projects. Its 10 kg self-locking load capacity, continuous 360-degree pan rotation and compact all-metal structure make it suitable for security integrators and OEM teams that need a configurable outdoor motion platform without purchasing a fixed camera payload.

The unit supports closed-loop position control and can begin operating within five seconds after power-on without a full self-test sequence. A configurable top mounting plate helps simplify payload installation and service access.

✔ Top-load structure with up to 10 kg self-locking load
✔ Pan speed from 0.01 to 90 degrees per second
✔ Closed-loop position control with power-off position retention
✔ Low-noise movement for monitoring environments

Request Quote View Specs

Key Advantages

Compact 10 kg Top-Load Design-The compact top-load architecture provides a practical balance between payload capacity and installation size for visible, thermal and dual-sensor assemblies.

Wide Pan-Speed Range-A pan-speed range of 0.01 to 90 degrees per second supports both low-speed observation and faster repositioning within the verified operating envelope.

Position Retention After Power Loss-Closed-loop position control retains the recorded position when power is interrupted, helping reduce repeated calibration during system restart.

Integration-Friendly Control-RS485/RS422 communication, Pelco-D support and an optional network-camera interface allow the PTU to fit common industrial surveillance control architectures.

Outdoor Mechanical Protection-The aluminum-alloy enclosure and IP66 protection rating support outdoor monitoring projects when installed according to the approved environmental requirements.

Applications

Factory and industrial-site surveillance

Road and traffic monitoring

Industrial perimeter security

Power and transportation corridors

Technical Specifications

JEC-PTU-2140 Series

Parameter	Specification
Load Structure	Top load
Maximum Self-Locking Load	10 kg
Maximum Dimensions	H 270 × L 168 × W 220 mm
Transmission	Precision spur gear drive
Installation	Upright, four-point base mounting
Power Supply	24 VDC
Pan Range	360° continuous
Tilt Range	-70° to +45°
Pan Speed	0.01-90°/s
Tilt Speed	0.01-18°/s
Angular Resolution	<0.01°
Repeat Positioning Accuracy	±0.05°
Control Interface	RS485 / RS422
Protocol	Pelco-D
Standard Baud Rate	9600 bps
Presets	199 standard; up to 255 additional positions stated by source
Protection Rating	IP66
Operating Temperature	-25°C to +65°C
Operating Humidity	<90% RH
Unit Weight	Approximately 6 kg

Dimension Specifications

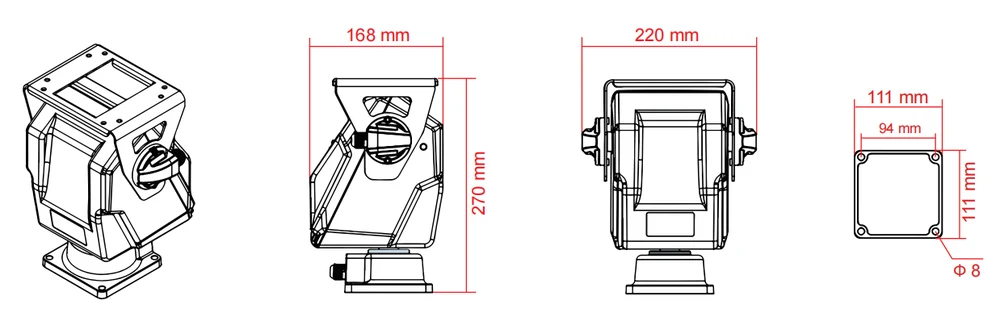

JEC-PTU-2140 top-load industrial pan-tilt unit dimension drawing with mounting dimensions

Compare JEC PTU Models

Compare payload class and typical integration needs. Final selection also depends on payload balance, dimensions, center of gravity and motion requirements.

Model	Payload Capacity	Typical Integration
JEC-PTU-720	1.7 kg	Compact sensors, robots and mobile platforms
JEC-PTU-760	3 kg single / 6 kg dual	Dual-side EO/IR and auxiliary sensor cabins
JEC-PTU-1205	5 kg	Compact cameras and lightweight sensor payloads
JEC-PTU-2140 (Current)	10 kg	Compact top-mounted camera assemblies
JEC-PTU-2315	15 kg	Industrial long-zoom and medium-load EO/IR payloads
JEC-PTU-7230	35 kg	Heavy housings and large long-range payloads

Selection note: Choose the PTU based on payload, balance and motion requirements.

Frequently Asked Questions

What payload can the JEC-PTU-2140 support?

The source specification lists a maximum self-locking load of 10 kg. Final suitability also depends on payload dimensions, center of gravity, mounting position and movement requirements.

Is the JEC-PTU-2140 a complete PTZ camera?

No. It is a configurable pan-tilt motion platform. The visible camera, thermal module, housing and other payload components are selected separately.

Which control interfaces are available?

The source specification lists RS485/RS422 control and Pelco-D protocol. Network and controller compatibility must be checked for the final system configuration.
