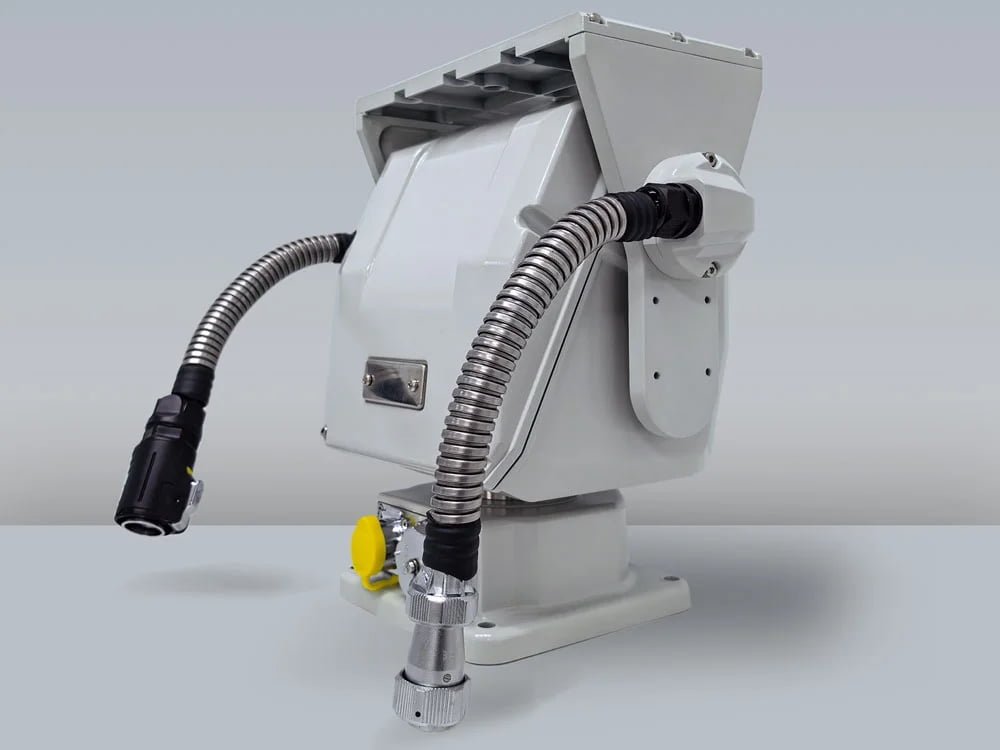

Industrial PTU Positioner for Long-Zoom and Multi-Sensor Integration
The JEC-PTU-2315-HP gives OEM teams and security system integrators a 15kg pan tilt unit for projects that need to select the optical payload independently. Its top-load architecture can be reviewed for approved visible camera housings, thermal modules, illumination devices and other project-specific sensors, allowing the final system to match the required observation task.
For long-zoom and medium-load surveillance payloads, movement quality matters as much as stated payload capacity. The HP version is positioned for a wider speed range and finer low-speed control than the standard J-PT-2315 platform. The listed pan range of 0.01 to 37 degrees per second and tilt range of 0.01 to 9 degrees per second support smooth manual control, preset positioning and controlled observation movement.
15kg Top-Load PTU Platform
The source material lists a 15 kg self-locking top-load capacity. This payload class is intended for approved camera housings, long-zoom visible cameras, dual-light equipment and other medium-load optical assemblies. Final payload suitability must be confirmed from the total mass, center of gravity, dimensions, wind load and mounting arrangement.
Fine Low-Speed Motion Control
The listed motion range is 0.01 to 37 degrees per second for pan and 0.01 to 9 degrees per second for tilt. This supports controlled tracking and positioning tasks where long focal lengths or carefully framed observation require smoother low-speed movement.
Closed-Loop Position Control
Closed-loop speed and position control, together with power-off position retention listed in the source material, help the PTU resume from its recorded position without a full homing sequence. The source page also states that the platform can begin working within five seconds after power-on.
Industrial PTU Positioner Integration
RS485 and RS422 interfaces with Pelco-D protocol support provide a practical control basis for system integrators. The listed 24 VDC input is customizable, subject to engineering confirmation for the final configuration.
Outdoor-Oriented Mechanical Protection

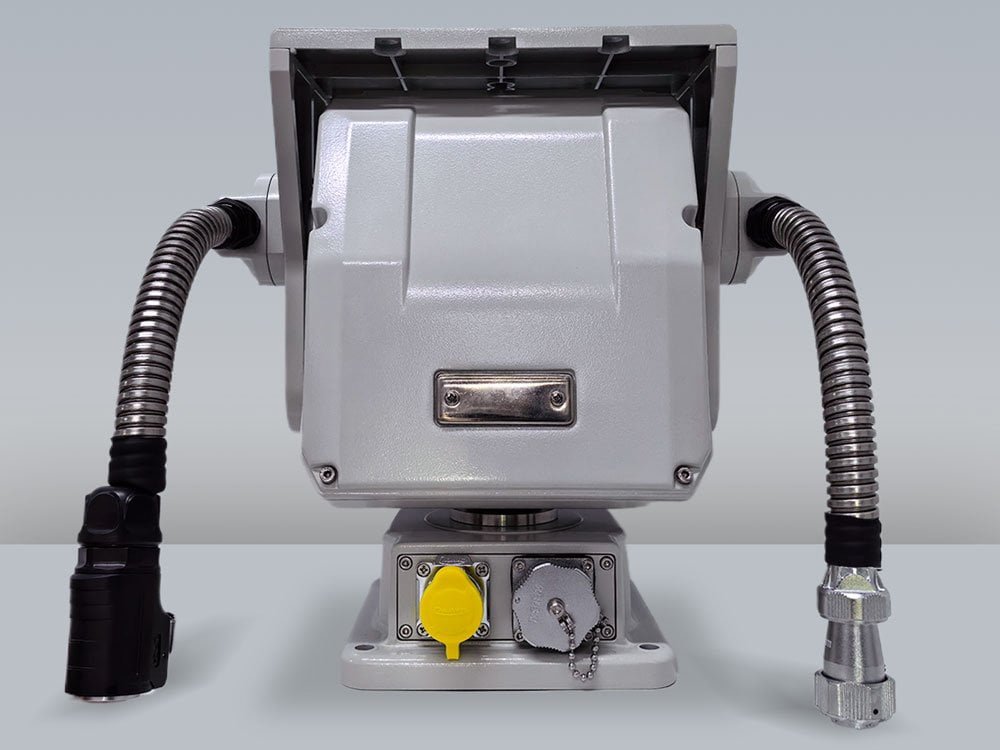

The source material lists an aluminum-alloy structure, IP66 protection and an operating temperature range of -40 to +65 degrees C. Outdoor performance must be confirmed for the complete assembly, including the selected payload enclosure, cables, connectors and installation method.
Designed for Payload Integration Review

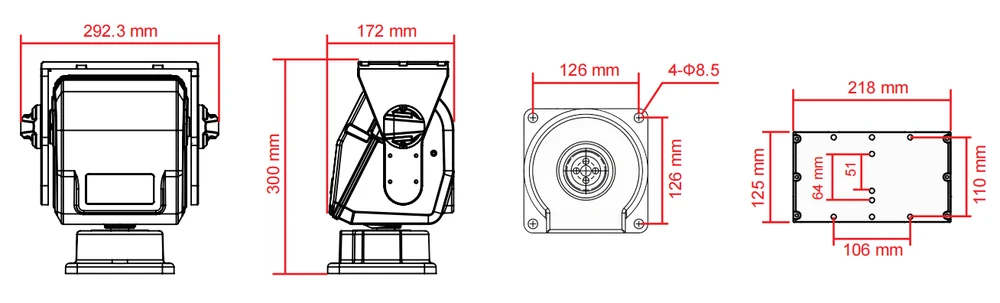

A 15 kg payload class is only the first selection point. Before choosing an industrial pan tilt unit, review the complete payload weight, center of gravity, housing dimensions, mounting plate, cable routing, required pan and tilt range, wind exposure, input voltage and controller interface. These inputs determine whether the final configuration is suitable for the JEC-PTU-2315-HP.
Typical Project Applications
- Road and smart-city monitoring
- Railway and transportation-corridor surveillance
- Port, bridge and coastal infrastructure observation
- Petrochemical site and industrial-park perimeter monitoring
- Long-zoom visible camera and dual-light payload integration
- Customized industrial camera and sensor positioning systems
Positioning Within the JEC PTU Range
The JEC-PTU-2315-HP is the first JEC model to review for a 15kg pan tilt requirement. Projects requiring a higher verified payload class should be reviewed separately against the JEC-PTU-7230 35 kg platform, with final selection confirmed by engineering.
