JEC-PTU-7230 35kg Heavy Duty Pan Tilt Unit/Head

Model: JEC-PTU-7230 Series

35kg Pan Tilt Unit for Heavy-Duty Surveillance Payloads

The JEC-PTU-7230 is a 35kg pan tilt unit for large camera housings, long-range optical systems and heavy EO/IR payload integration. Its top-load structure gives system integrators and OEM teams a heavy-duty PTU platform when a complete surveillance payload requires more capacity, mounting stability and controlled pan-tilt movement than a medium-load unit can provide.

This heavy duty pan tilt unit combines a 35 kg self-locking load class, 360-degree continuous pan movement and a precision worm gear transmission structure listed in the source material. It is intended for fixed, high-point and outdoor monitoring systems, subject to final engineering confirmation of the payload, center of gravity, wind exposure and installation conditions.

Request Quote View Specs

Key Advantages

01

The source material lists a 35 kg self-locking top-load capacity. This makes the JEC-PTU-7230 a first model to review for large camera housings, long-range optical assemblies and approved EO/IR payloads. The final permitted load depends on the complete mechanical configuration, not payload weight alone.

02

The top-load structure and full-metal precision worm gear transmission are designed for stable movement of heavier payload assemblies. This configuration is suited to projects where mounting stability, payload balance and controlled scanning are central selection factors.

03

The listed pan speed range is 0.22 to 30 degrees per second, and the listed tilt speed range is 0.3 to 13 degrees per second. This range supports project-specific movement requirements for fixed monitoring, long-range observation and large payload positioning.

04

The old product-page source lists 24 VDC or 48 VDC input with a +/-20% range and customization options. The final voltage, wiring, power budget and control architecture should be approved for the selected payload configuration.

Product Details

35kg PTU Positioner for Long-Range and Multi-Sensor Payload Integration

The JEC-PTU-7230 is a 35kg PTU positioner for projects that need to integrate their own large camera housing, long-zoom visible camera, thermal module or approved EO/IR payload. As a separate industrial pan tilt unit, it allows the optical and sensing configuration to be matched to project requirements instead of limiting the system to a fixed PTZ camera assembly.

For a heavy duty pan tilt unit, nominal payload capacity is only one part of the engineering decision. Payload dimensions, center of gravity, mounting plate, wind load, cable routing, required pan and tilt range, operating speed, voltage input and installation environment all need to be reviewed together. This is particularly important for long focal-length optics and high-point installations, where balance and environmental exposure affect final system behavior.

Heavy-Duty Mechanical Platform

The source material describes a full-metal precision worm gear transmission, a DC brushless motor drive and digital absolute-position feedback. These features are intended to support controlled movement, repeatable preset operation and heavy payload integration. Final motion and positioning performance must be confirmed against the current approved JEC specification for the selected payload.

Typical Project Applications

  • Long-range surveillance with large optical camera housings
  • Fixed high-point monitoring and tower-mounted observation
  • Railway, road and transportation-infrastructure surveillance
  • Border, coastal and port-area observation systems
  • Forest fire watch and remote environmental monitoring
  • Customized heavy camera, thermal and EO/IR payload integration

Positioning Within the JEC PTU Range

JEC-PTU-7230 is the first JEC model to review for a verified 35kg pan tilt requirement. For a lower 15 kg payload class, review JEC-PTU-2315-HP. For payloads above 35 kg, do not assume a suitable JEC model is available; provide the payload drawing and operating conditions for engineering review.

Technical Specifications

Load StructureTop load
Stated Self-Locking Load35 kg

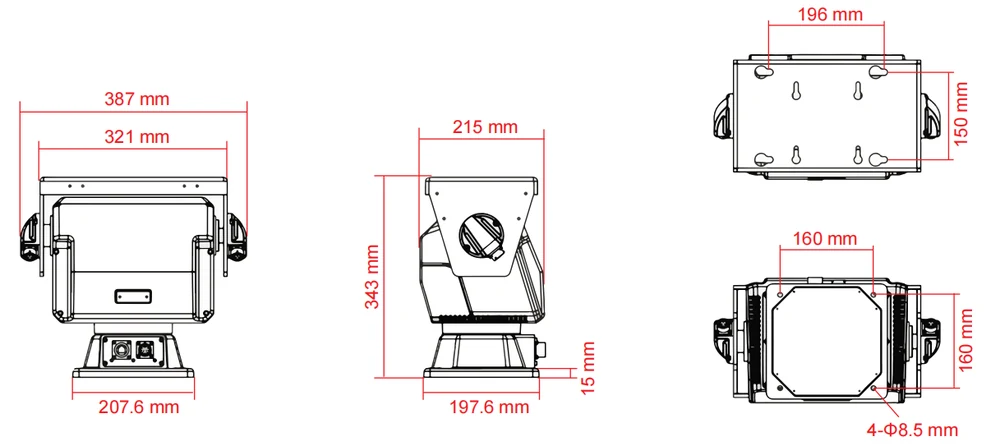

Maximum DimensionsH 343 mm x L 387 mm x W 215 mm
TransmissionFull-metal precision worm gear transmission
Motor DriveDC brushless motor drive
Power Supply24 VDC / 48 VDC +/-20%, customizable
Pan Range360 degrees continuous
Tilt Range-55 degrees to +60 degrees
Pan Speed0.22-30 degrees/s, customizable
Tilt Speed0.3-13 degrees/s, customizable
Repeated Positioning Accuracy<=0.05 degrees
Control InterfaceData Not Available
ProtocolData Not Available
Power ConsumptionData Not Available
Protection RatingIP66
Operating Temperature-40 degrees C to +65 degrees C
Unit Weight18 kg, excluding cover

Frequently Asked Questions

What is the stated payload capacity of the JEC-PTU-7230?
The source material lists a 35 kg self-locking top-load capacity. Final payload suitability must be confirmed from the complete assembly weight, center of gravity, dimensions, mounting arrangement, wind load and operating environment
Is JEC-PTU-7230 suitable for a 35kg pan tilt requirement?
JEC-PTU-7230 is the first JEC model to review for a verified 35kg pan tilt requirement. It is positioned as a heavy duty pan tilt unit for large camera housings, long-range optics and approved EO/IR payloads. Engineering review is required before final model selection.
What types of payloads can be integrated with the JEC-PTU-7230?
The platform can be reviewed for approved long-zoom visible cameras, thermal modules, large camera housings and other project-specific sensor assemblies. The final configuration must be evaluated for mechanical balance, power input, cable routing, enclosure integration and environmental exposure.
Is the JEC-PTU-7230 suitable for outdoor deployment?
The source material lists IP66 protection and an operating temperature range of -40 to +65 degrees C. Final outdoor suitability depends on the complete product assembly, including the payload enclosure, sealing, connectors, mounting method and site conditions.
