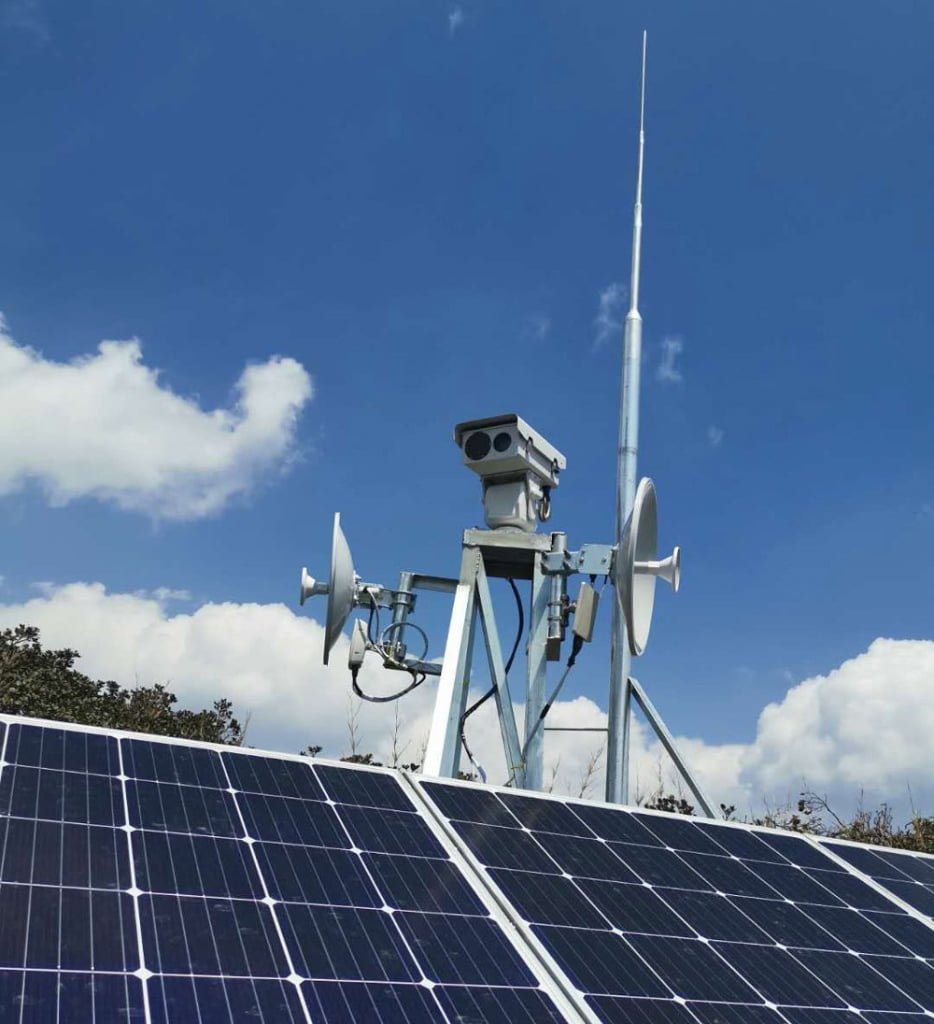

JEC PTZ solar-powered tower surveillance system for remote outdoor monitoring

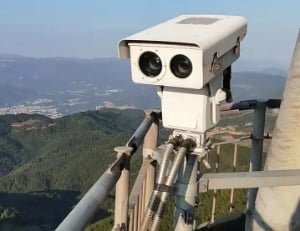

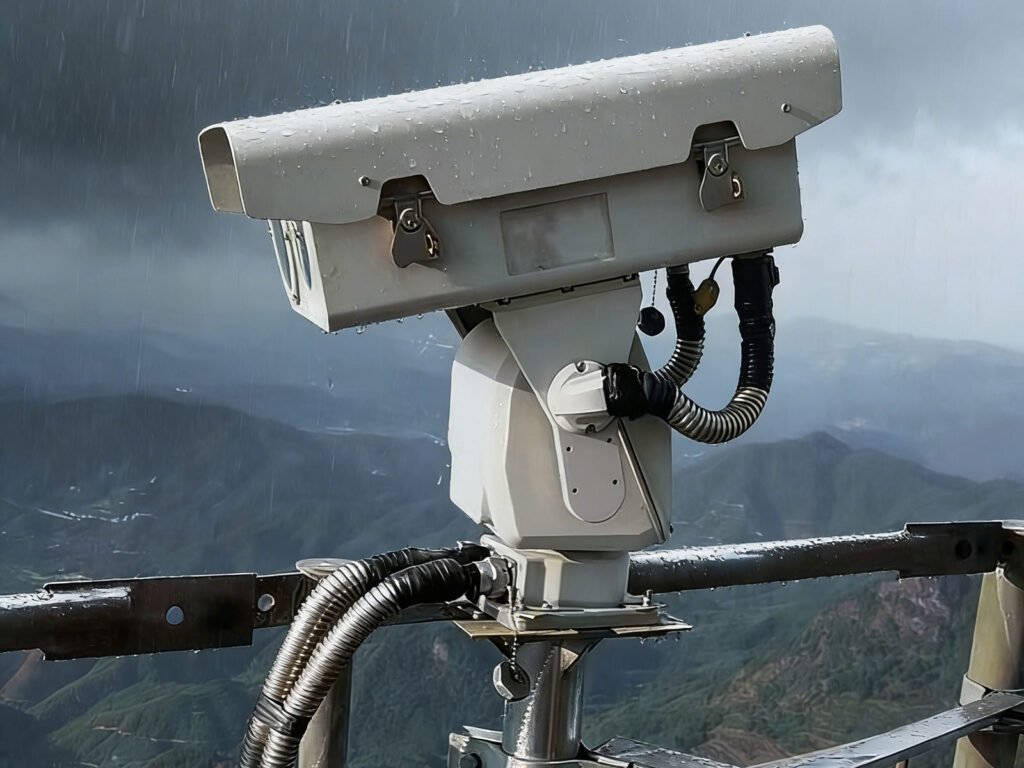

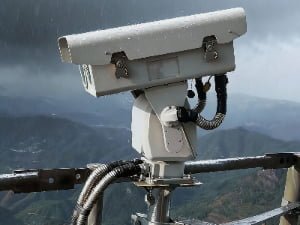

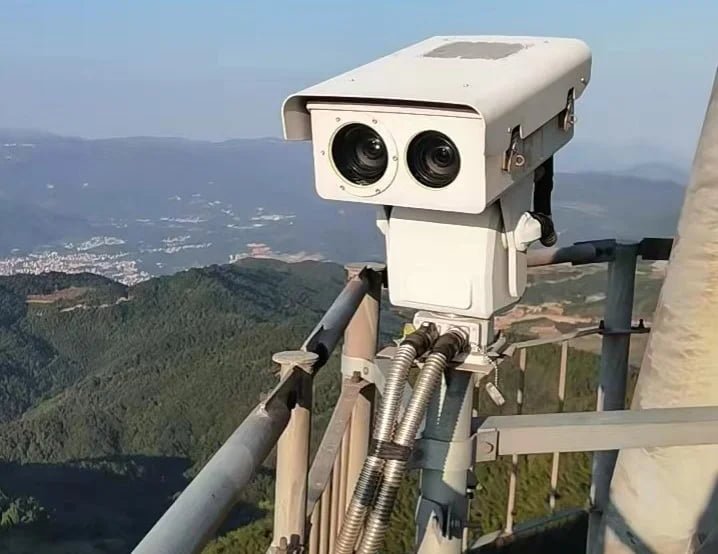

JEC PTZ long-range EO/IR camera installed outdoors for perimeter surveillance

Long Range Surveillance Camera for Day and Night Multi-Sensor Monitoring

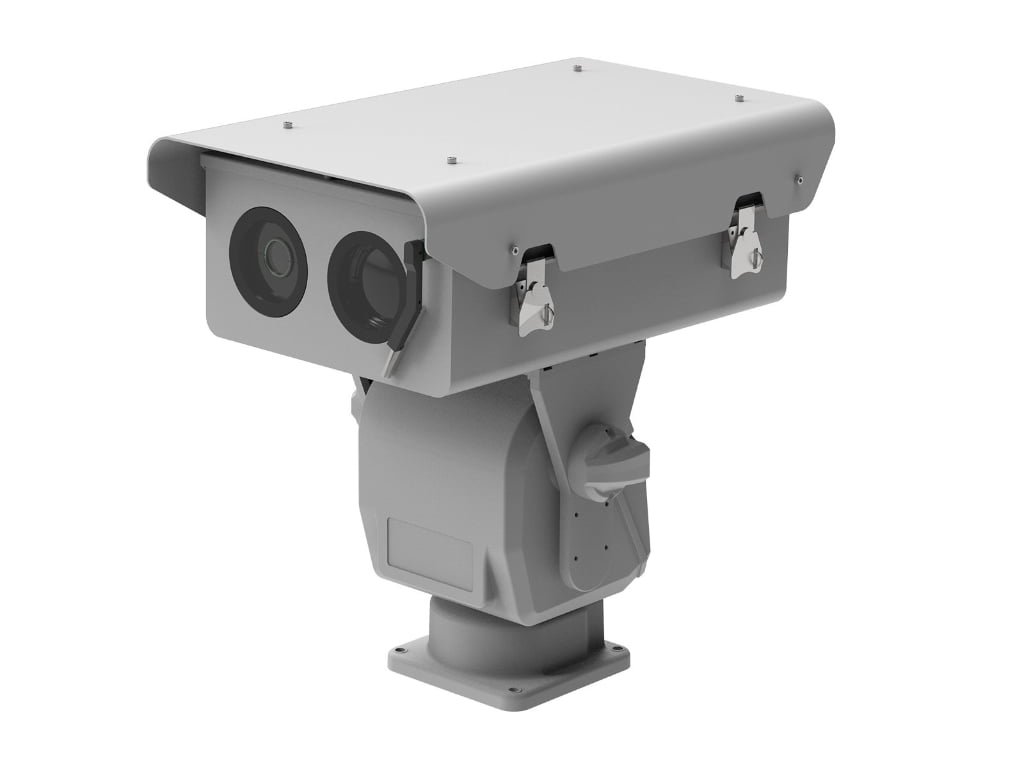

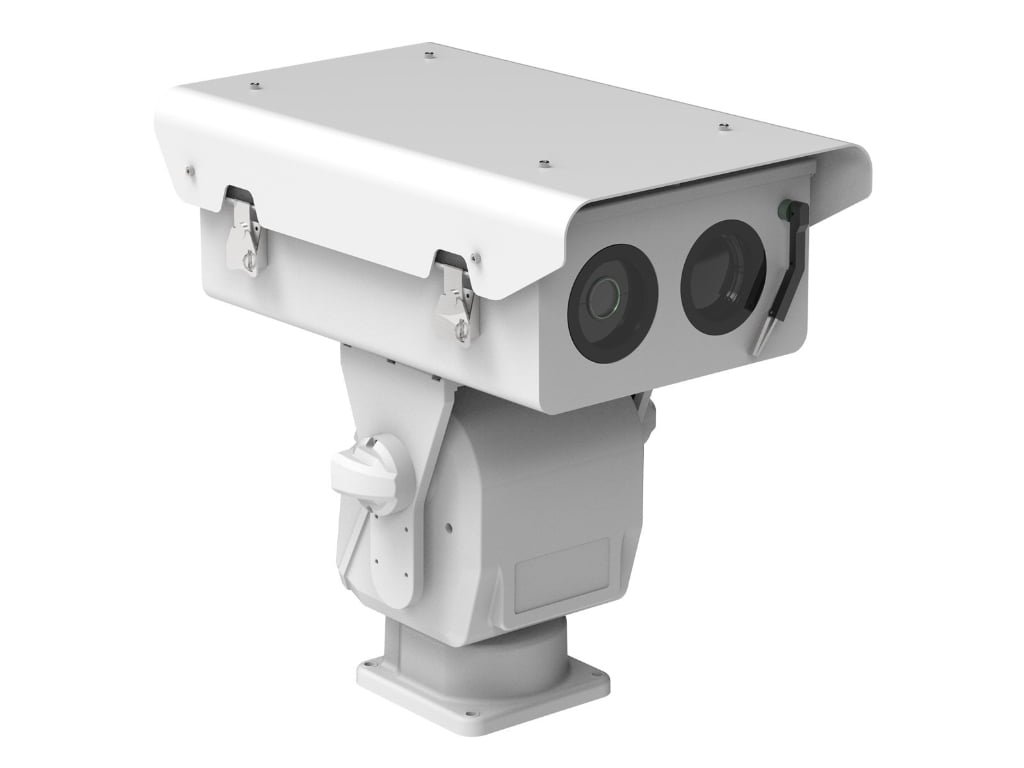

Model: JEC-PTZ-2315 Series EO/IR Thermal PTZ Camera System

Experience unparalleled situational awareness with our Dual‑Spectrum Thermal PTZ Camera.

This Long-Range PTZ Camera is designed for industrial users who need more than standard visual surveillance. It integrates a 92x optical zoom visible camera with either a 15–75mm thermal zoom module or an eye-safe 1535nm laser rangefinder into a single top-load multi-sensor platform, providing operators with a practical combination of long-range observation, thermal verification, and accurate distance information. The result is a practical Long-Range PTZ Camera for outdoor projects that need stable performance, easier installation, and dependable day-and-night observation.

✔ Compact top-mounted dual-sensor structure
✔ Multi-sensor fusion architecture
✔ 15–75mm thermal zoom module
✔ Quick engineering installation design

Request Quote View Specs

Key Advantages

Combines visible zoom, thermal imaging, and laser ranging in one platform, reducing separate devices and simplifying field deployment.

92x optical zoom supports long-range target observation where ordinary Pan Tilt Zoom Camera systems cannot provide enough detail.

The thermal zoom module improves verification in darkness, haze, backlight, and complex outdoor environments.

Laser rangefinding provides measurable target distance for faster decision-making and more efficient remote monitoring workflows.

Smart Video Analytics – Built‑in area intrusion, cross‑border detection, wandering, crowd gathering, and audio anomaly alerts on both visible and thermal channels.

Low-power operation, solar compatibility, and rugged outdoor design improve reliability at remote or difficult-to-maintain sites.

Applications

Dual-Sensor PTZ for Railway Monitoring

PTZ Camera for Tower and Utility Inspection

PTZ Surveillance for Ports and Harbors

Long-Zoom PTZ for Bridge Monitoring

Thermal PTZ for Oil and Petrochemical Sites

PTZ Solutions for Critical Infrastructure

Technical Specifications

Model: JEC-PTZ-2315 Series EO/IR Thermal PTZ Camera System

Pan Tilt Motor

Parameter	Specification
Max dimensions	H 300mm* L 292.3mm* W 172mm
Transmission form	Precise spur gear transmission
Power supply voltage	24V±20% (Customizable)
Power protection	TVS 6000V anti-lightning and anti-surge, in line with GB/T17626.5 level 4
Rotation range	Pan 360° continuous rotation, tilt -70°~+45°
Speed range	Pan 0.01~37°/s, tilt 0.01~9°/s (Customizable)
Max acceleration
Power consumption	≤6W (Standby), ≤30W (Operation)
Angular resolution	＜0.01°
Repeated positioning accuracy	≤0.05°
Protection level	IP66 (Customizable IP67)
Operating temperature and humidity	-40℃~65℃，＜90% RH

Visible Camera

Module	Parameter	Specification
Camera	Image Sensor	1/1.8″ Progressive Scan CMOS
Lens	Focal Length	6.1~561mm, 92x Optical Zoom
Lens	Aperture Range	F1.4-F4.7
Compression Standard	Video Compression	H.265 / H.264

Thermal Imaging Module

Parameter	Specification
Detector
Detector type	VOx Uncooled thermal Detector
Effective Pixels	640×512
Pixel size	12μm
Spectral range	8-14μm
Sensitivity (NETD)	≤35 mK @F1.0, 300K
Lens
Lens	15~75mm Zoom Lens
F Value	F0.9@15MM, F1.3@75mm
FOV	28.7°X21.7°~5.9°X4.4°
Focusing range	5M~∞ (15MM),10M~∞(75MM)
Sealing	IP67(front of lens)

Laser Ranging Parameters

Parameter	Specification
working band	1535nm±10nm
eye safety level	Class Ⅰ
launch aperture	Φ9.2mm
receiving aperture	Φ18.5mm
range capability	≥5000 m (reference value for typical large targets); ≥3000m (2.3m×4.6m standard target plate or equivalent target); ≥2000m* (people)
range hole	≤15m
quasi-accuracy rate	≥98%

Frequently Asked Questions

What is this pan tilt zoom camera designed for?

This model is designed for professional wide-area surveillance where users need accurate rotation, stable motion control, and reliable outdoor operation across demanding scenarios such as fire prevention, border monitoring, and coastal defense.

What sensor combination does this model provide?

It integrates a 92x visible zoom camera, a 15–75mm thermal zoom module, and a 1535nm eye-safe laser rangefinder in one multi-sensor platform.

What is the laser ranging capability of this model?

The rangefinder supports up to 5000m for typical large targets, around 3000m for standard vehicle-sized targets, and around 2000m for people.

Does it support remote control and system integration?

Yes. It supports RS485/422 control, PELCO-D communication, ONVIF protocols, preset positions, automatic scanning, and remote monitoring integration.
