Model: T-D06-H2146-HP

Discover the JEC high-speed pan tilt zoom camera engineered for advanced PTZ security camera system deployment.

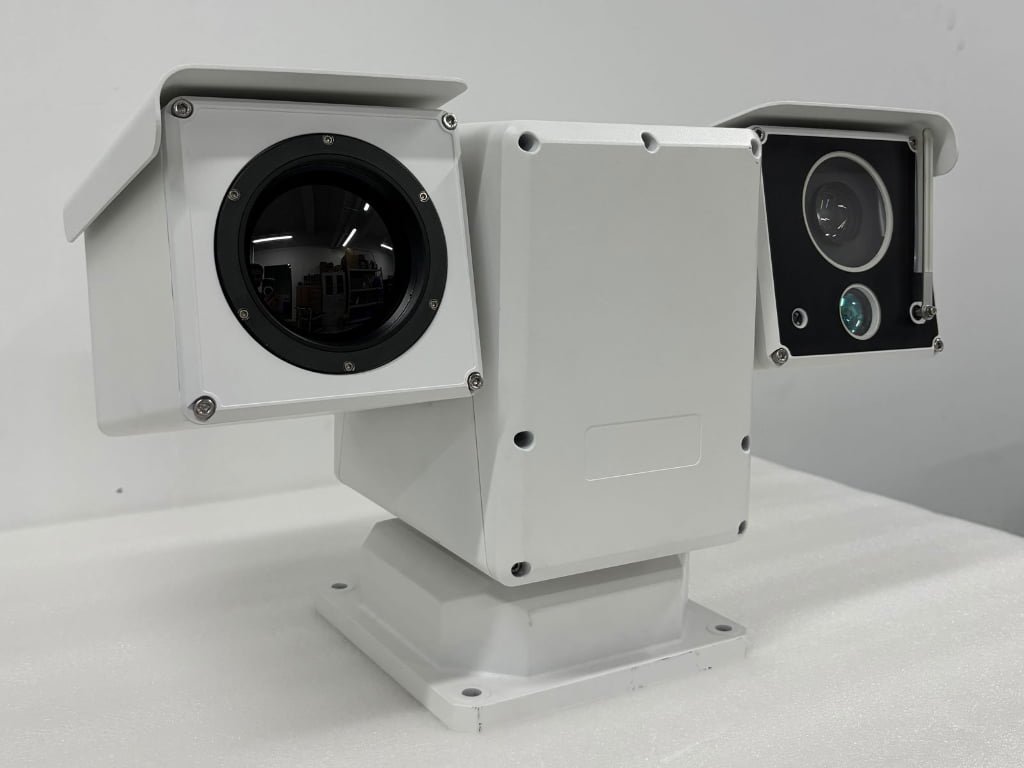

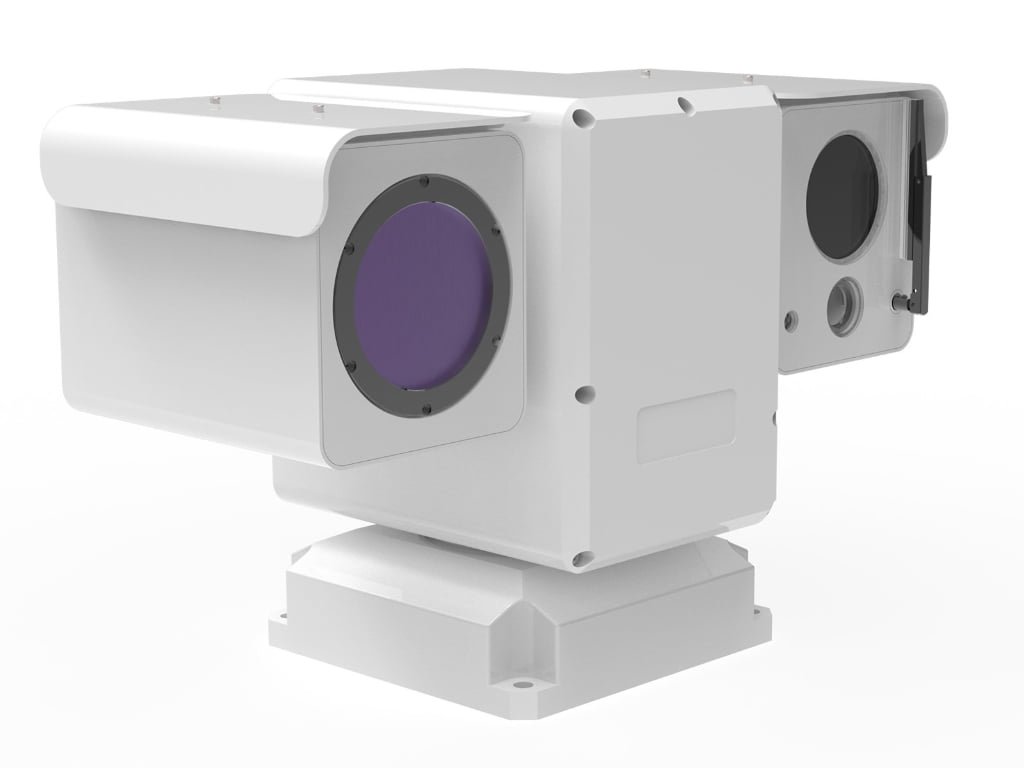

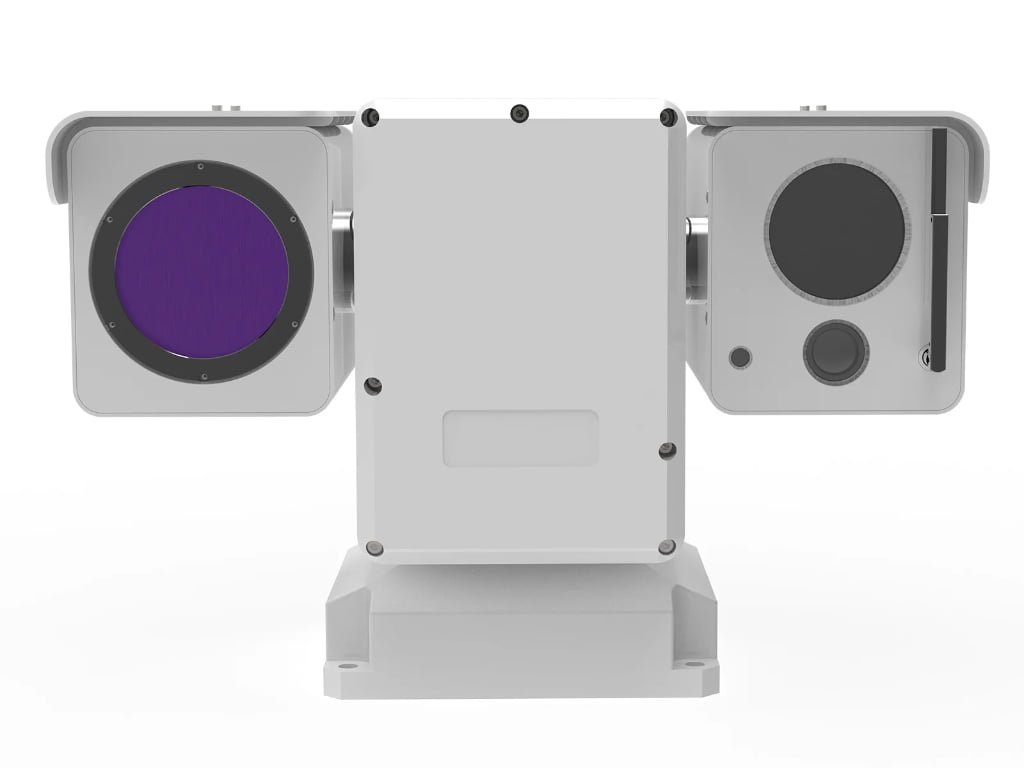

The JEC high-speed pan tilt zoom camera is a professional PTZ security camera platform built for demanding surveillance environments that require wide-area coverage, stable transmission, precise motion response, and dependable outdoor operation. Designed as an advanced PTZ camera system, this model supports single-side and double-side payload configurations. With a precise spur gear drive, continuous 360° pan, ±90° tilt, and low angle error, it maintains stable and accurate positioning during fast motion.

✔ High-speed pan tilt zoom response
✔ 180°/s ultra-fast pan response
✔ 110°/s rapid tilt movement
✔ Dual-sensor visible and thermal imaging
✔ Strong dual-cabin expansion capability

Request Quote View Specs

Key Advantages

High-Speed and Precise PTZ Motion: With continuous pan rotation and a wide tilt range, the system is built to track moving targets and monitor large outdoor zones with accuracy.

Stable Transmission and Mechanical Reliability: The precise spur gear drive helps resist vibration and protect transmission.

Dual-cabin architecture enables stronger expansion for thermal, visible, lighting, and smart modules.

Flexible Functional Expansion: This PTZ camera system supports optional housing modules such as automatic wipers, automatic lighting, edge computing, and GPS, allowing integrators to configure the unit for more advanced smart surveillance tasks.

Low-Power PTZ Camera System Design: For projects that prioritize energy efficiency, this unit operates at ≤5W standby power and ≤50W operating power, making it a strong fit for a low power pan tilt zoom security camera requirement in continuous monitoring systems.

Built for Outdoor and Industrial Surveillance: It offers IP66 weather protection, an aluminum alloy body, surge resistance, and operation in temperatures from -40℃ to 65℃.

Applications

Fast-response outdoor security projects

Military base airspace protection

critical infrastructure observation

PTZ Camera for Forest Fire Prevention

Technical Specifications

Model: T-D06-H2146-HP

Pan Tilt Motor

Parameter	Specification
Max dimensions	H 315mm* L 475mm* W 245mm
Transmission form	Precise spur gear drive
Power supply voltage	24V~36V
Power protection	TVS 8000V anti-lightning and anti-surge, in line with GB/T17626.5 level 4
Rotation range	Pan 360° continuous rotation, tilt±90°
Speed range	Pan 0.09°~180°/s , tilt 0.09°~110°/s(Extendable)
Max acceleration	Pan 300°/s², tilt 240°/s²
Power consumption	≤5W (Standby), ≤50W (Operation)
Angular resolution	＜0.01°
Repeated positioning accuracy	＜0.05°
Protection level	IP66
Operating temperature and humidity	-40℃~65℃,＜90%RH

Visible Camera

Module	Parameter	Specification
Camera	Image Sensor	1/2.8” Progressive Scan CMOS
Lens	Focal Length	7~322mm, 46x Optical Zoom
Lens	Aperture Range	F1.8-F6.5
Compression Standard	Video Compression	H.265 / H.264

Thermal Imaging Module

Parameter	Specification
Detector
Detector type	5th generation uncooled FPA sensor
Effective Pixels	640×512,50Hz
Pixel size	12μm optional
Spectral range	7.5～14μm,LWIR
Sensitivity (NETD)	≤40mK
Lens
Lens	25~75mm,3X zoom
FOV	24°×18°~8°×6°

Frequently Asked Questions

What is the main advantage of this pan tilt zoom camera?

Its key strengths are high-speed response, larger payload capacity, and stronger dual-cabin expansion for multi-sensor outdoor surveillance projects.

How fast can the unit move?

It supports pan speeds from 0.09° to 180°/s and tilt speeds from 0.09° to 110°/s, with high angular acceleration for rapid target repositioning.

What system integration options are available?

It supports RS485/RS422, PELCO-D, H.265/H.264, ONVIF, local storage, and optional modules such as automatic wipers, lighting, GPS, and edge computing.

Is it suitable for outdoor surveillance cameras in harsh environments?

Yes. It is rated IP66, supports -40°C to 65°C operation, and includes TVS 8000V anti-surge and anti-lightning protection.
