Model: T-D02-H2130-25mm

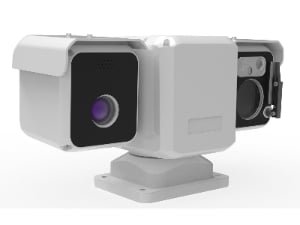

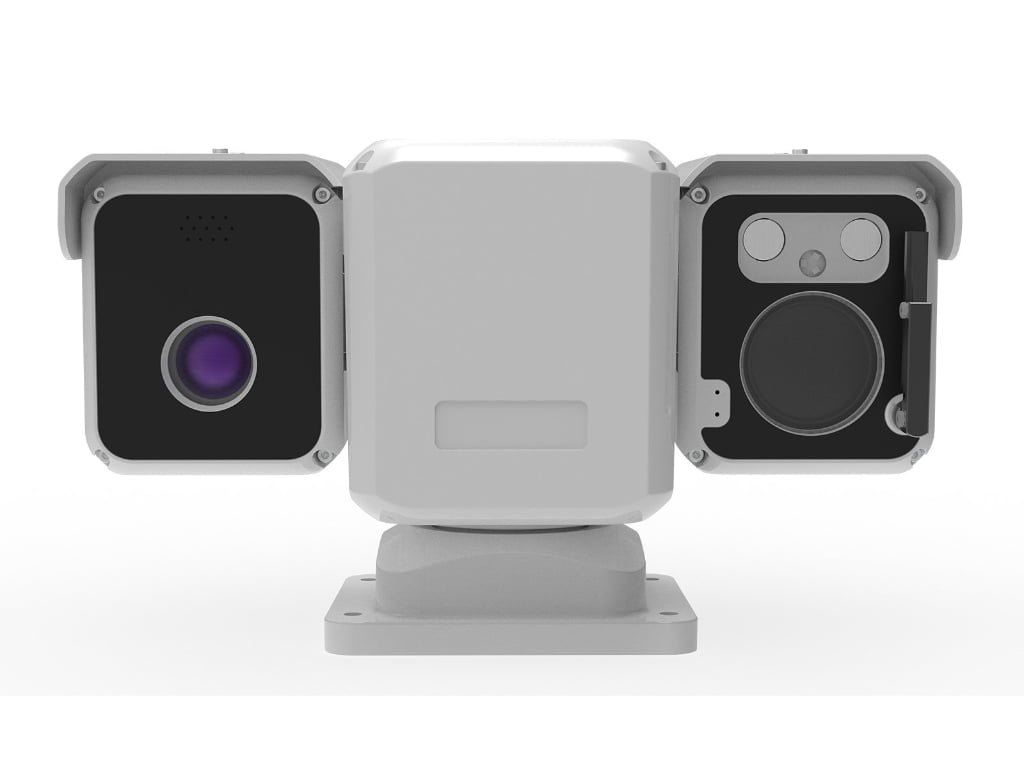

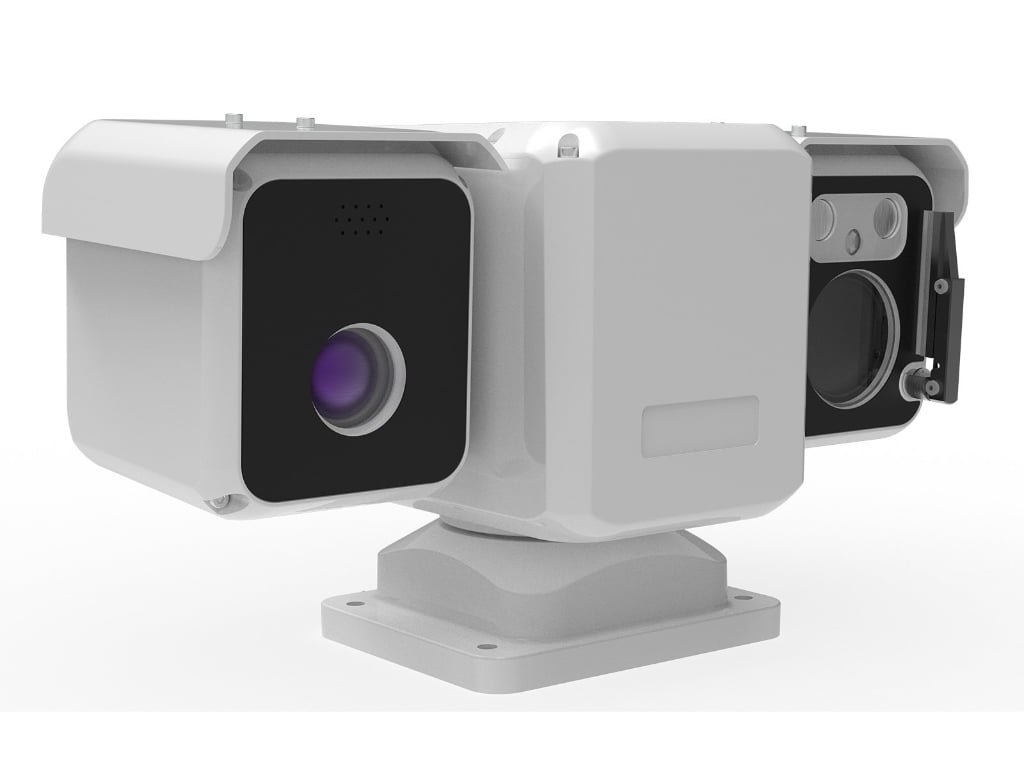

The compact thermal PTZ camera combines visible and thermal imaging in a lightweight stabilized gimbal for reliable day-and-night monitoring.

The compact dual-housing structure helps reduce integration space, while ultra-low standby and operating power make it ideal for battery-powered and mobile systems. With wide 10V-36V voltage input, anti-surge protection, IP66 weather resistance, and EO/IR dual-sensor linkage, it is a practical thermal imaging camera for mobile surveillance, robot monitoring, and lightweight perimeter security.

✔ Compact dual-sensor EO/IR design
✔ Low-power mobile-ready architecture
✔ AI intelligent target recognition
✔ Fast, precise pan-tilt response
✔ Stabilized tracking under vibration

Request Quote View Specs

Key Advantages

Compact structure saves installation space on mobile, robotic, and perimeter platforms.

Advanced stabilization improves image steadiness and tracking reliability in motion.

Ultra-low power consumption supports longer runtime on limited power systems.

Reliable thermal imaging security camera capability for early warning

Fast-response DMD drive enables precise positioning and smooth target following.

Dual visible and thermal sensors improve detection in day and night.

Applications

Inspection Robot Vision Sensing

Smart Transmission Line Inspection

Vehicle-Mounted Rapid Deployment

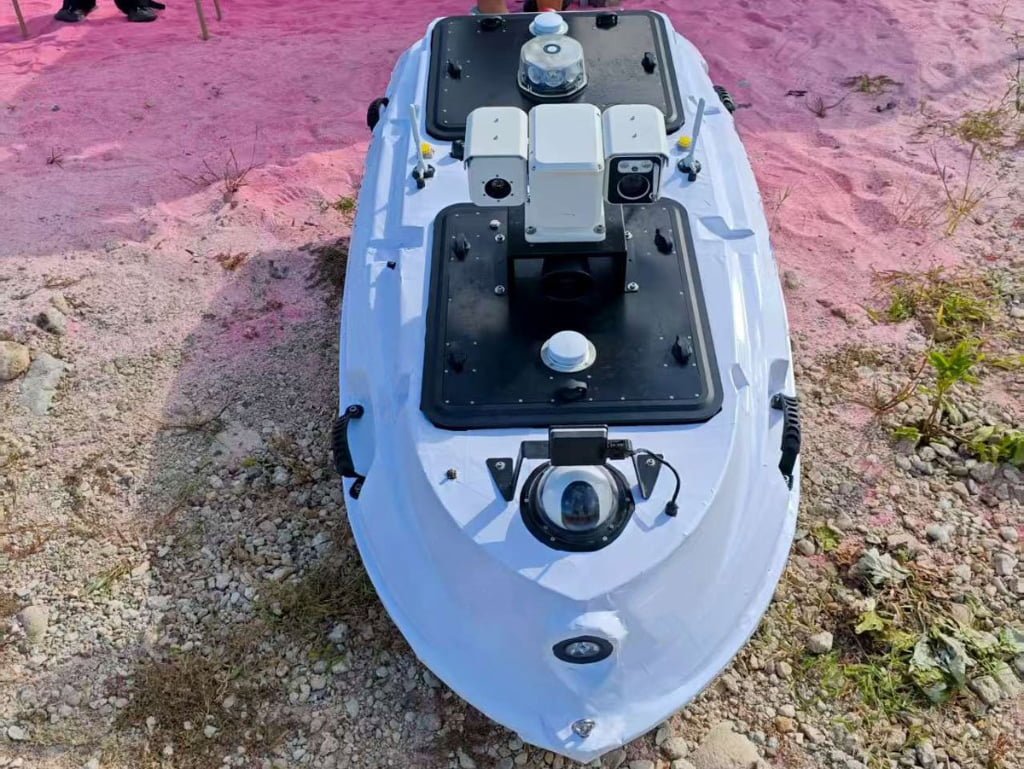

PTZ Camera for Unmanned Surface Vessels (USV)

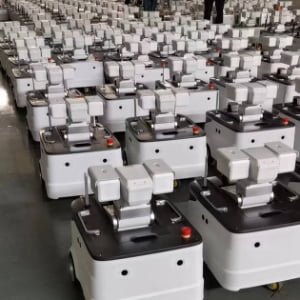

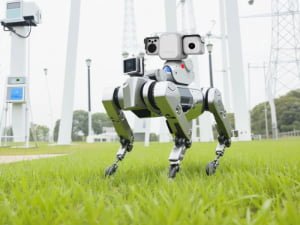

PTZ Camera for Inspection Robots

Remote Tower Monitoring

Technical Specifications

Model: T-D02-H2130-25mm

Pan Tilt Motor

Parameter	Specification
Max dimensions	H 170mm* L 320mm* W 170mm
Transmission form	Precise spur gear transmission
Power supply voltage	10V~36V
Power protection	TVS 8000V anti-lightning and anti-surge, in line with GB/T17626.5 level 4
Rotation range	Pan 360° continuous rotation, tilt ±90°
Speed range	Pan 0.17~100°/s, tilt 0.17~80°/s
Max acceleration	Pan 300°/s², tilt 240°/s²
Power consumption	≤4W (Standby),≤8W (Operation)
Angular resolution	0.01°
Protection level	IP66
Operating temperature and humidity	-40℃~70℃，＜90% RH

Visible Camera

Module	Parameter	Specification
Camera	Image Sensor	1/2.8” Progressive Scan CMOS
Lens	Focal Length	5.5~165mm, 30x Optical Zoom
Lens	Aperture Range	F1.67-F3.67
Compression Standard	Video Compression	H.265 / H.264

Thermal Imaging Module

Parameter	Specification
Detector
Detector type	VOx Uncooled thermal Detector
Effective Pixels	640×512
Pixel size	12μm
Spectral range	8-14μm
Sensitivity (NETD)	≤35 mK @F1.0, 300K
Lens
Lens	25mm Athermalized Lens
F Value	F1.0@25mm
FOV	17.4°X14.0°
Focusing range	25mm： 1M—∞
Sealing	IP67(front of lens)

Frequently Asked Questions

What makes this thermal PTZ camera suitable for mobile surveillance?

Its compact size, low power draw, stabilized tracking, and wide voltage input make it easier to integrate into moving and battery-powered systems.

Is this PTZ security camera suitable for outdoor use?

Yes. The product page specifies an IP66 protection level, all-metal housing, anti-surge capability, and operation in -40℃ to 65℃ environments, making it suitable for all-weather outdoor deployment.

How stable is the tracking performance?

The gimbal provides 0.05° static stabilization accuracy and no more than 0.3° dynamic stabilization accuracy for smooth target observation.

Does it support both visible and thermal imaging?

Yes. The system combines a visible zoom camera with a thermal detector for EO/IR dual-sensor monitoring in day, night, and low-visibility conditions.

Is this a drone thermal camera?

It is best positioned for mobile surveillance, robotics, and lightweight perimeter security.
