High-Performance Outdoor Pan Tilt CCTV Camera | PTZ for Industrial Monitoring

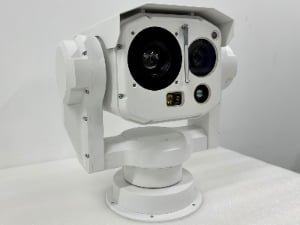

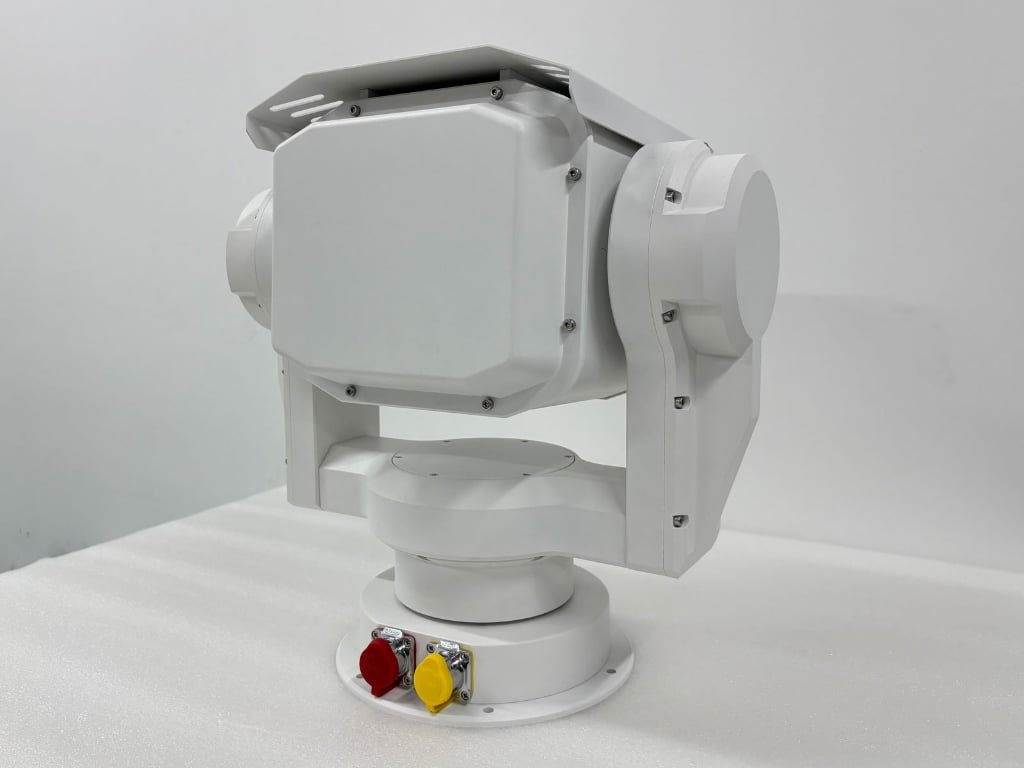

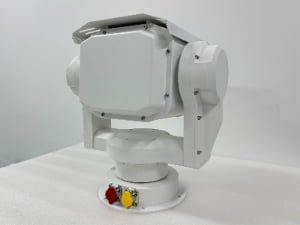

The JEC pan tilt CCTV camera is created for commercial and industrial users who need more flexible coverage than a traditional fixed camera can provide.

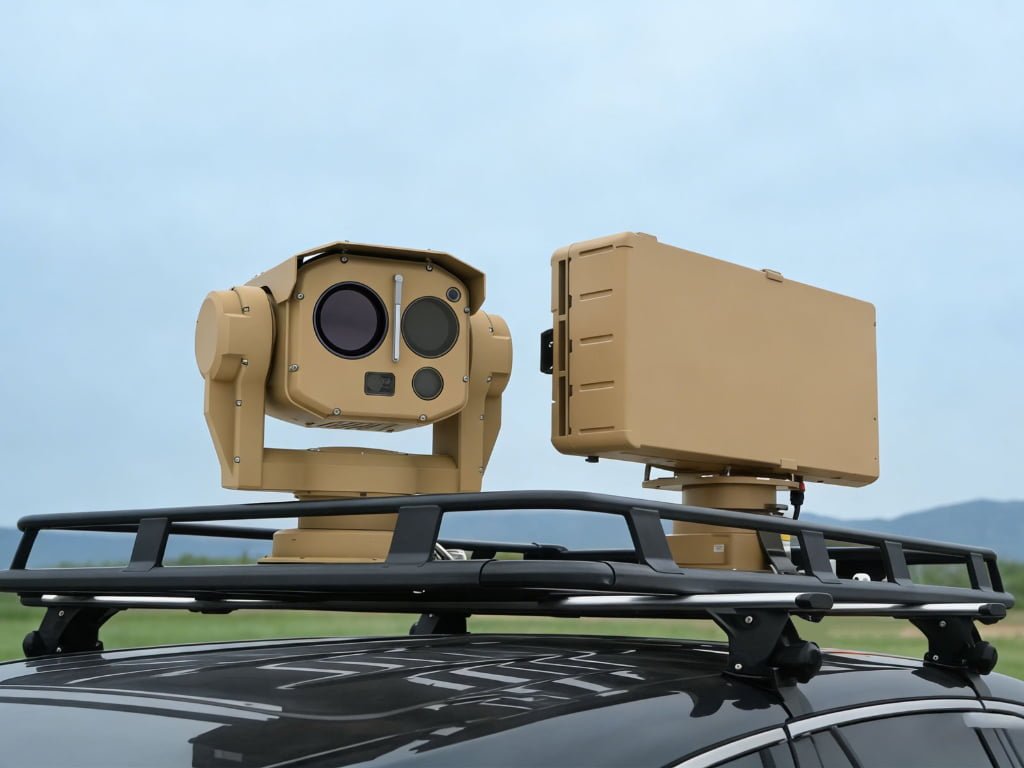

This professional pan tilt camera platform supports responsive directional control, wider monitoring angles, and clearer target inspection for dynamic security tasks. As a dependable PTZ camera solution, it offers a balanced combination of surveillance efficiency, remote control convenience, and scalable deployment for modern CCTV projects. Key advantages include low power consumption, fast response, industrial-grade durability, and seamless integration with existing command and control systems. U-type pan tilt actively compensates for external disturbances such as vehicle vibration, vessel roll, or wind-induced movement. It is widely used in power line inspection, border patrol vehicles, unmanned ground vehicles (UGVs), and maritime monitoring systems.

✔ Modular payload interface
✔ Dual-axis active image stabilization
✔ Wide operating temperature range
✔ Low standby and operational power

Key Advantages

01

Greater coverage flexibility than fixed CCTV cameras

02

Optical zoom support for better target verification

03

Commercial-grade pan tilt camera performance for daily operations

04

Reliable performance in harsh weather and complex field conditions

05

Easy fit for integrators building PTZ-based CCTV upgrades

Applications

Border and fence-line surveillance

Critical infrastructure observation

Oil, gas, and industrial zone monitoring

Large-area perimeter and intrusion detection

Technical Specifications

Pan Tilt Parameters

Parameter Specification
Max dimensions H 315mm * L 475mm * W 245mm
Mode of load bearing T-type double side load
Transmission form Precise spur gear drive
Load weight Single cabin 3KG, double cabin 6KG
Power supply voltage 24V~36V
Power protection TVS 8000V anti-lightning and anti-surge, in line with GB/T17626.5 level 4
Rotation range Pan 360° continuous rotation, tilt ±90°
Speed range Pan 0.09°~180°/s, tilt 0.09°~110°/s (Extendable)
Max acceleration Pan 300°/s², tilt 240°/s²
Power consumption ≤5W (Standby), ≤50W (Operation)
Angular resolution <0.01°
Angle error <0.05°
Protection level IP66
Operating temperature and humidity -40℃~65℃, <90%RH
Self weight 20KG
Control communication interface 485/422
Communication protocol PELCO-D

Frequently Asked Questions

What is this pan tilt zoom camera designed for?
This model is designed for professional wide-area surveillance where users need accurate rotation, stable motion control, and reliable outdoor operation across demanding scenarios such as fire prevention, border monitoring, and coastal defense.
Is this PTZ security camera suitable for outdoor use?
Yes. The product page specifies an IP66 protection level, all-metal housing, anti-surge capability, and operation in -40℃ to 65℃ environments, making it suitable for all-weather outdoor deployment.
Can this PTZ camera system support intelligent expansion?
Yes. The housing can be configured with optional modules including automatic wipers, automatic lighting, edge computing, and GPS.
What makes this a good industrial PTZ camera for perimeter security?
Its continuous pan, wide tilt range, precise spur gear transmission, fast DMD response, low-power operation, and durable IP66 body make it a practical fit for industrial perimeter and infrastructure surveillance.
