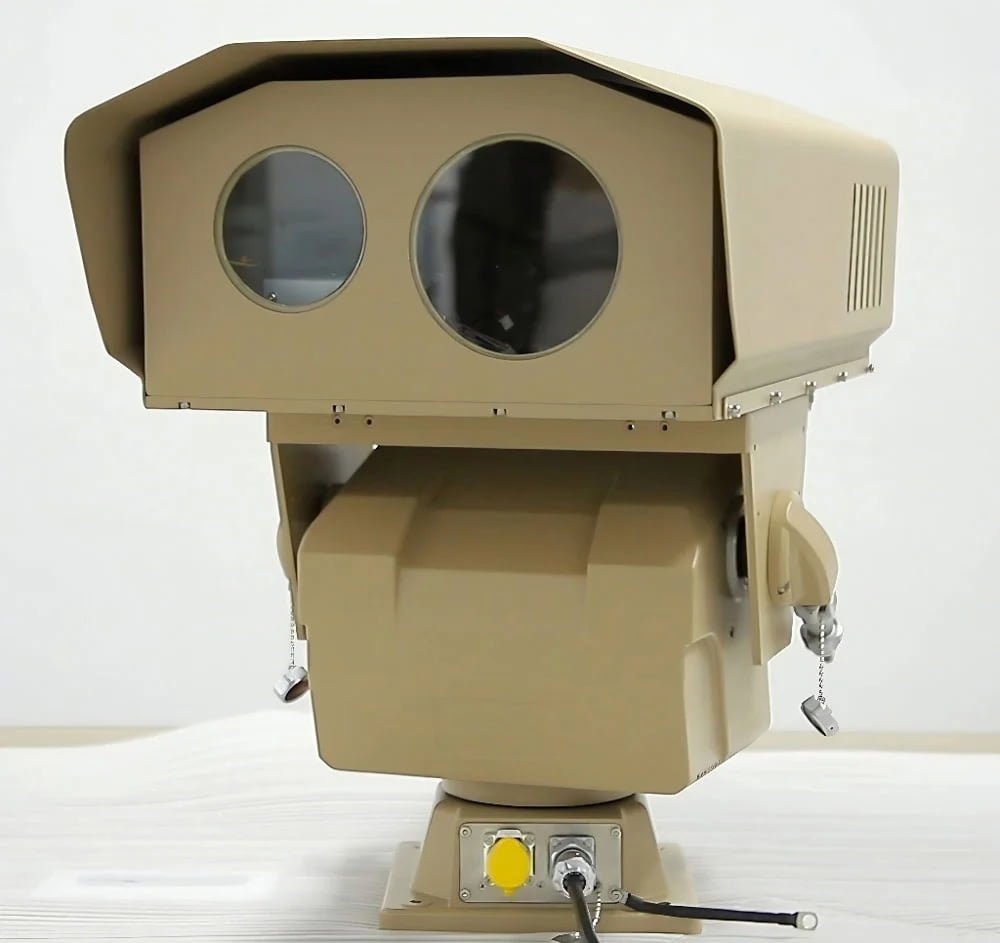

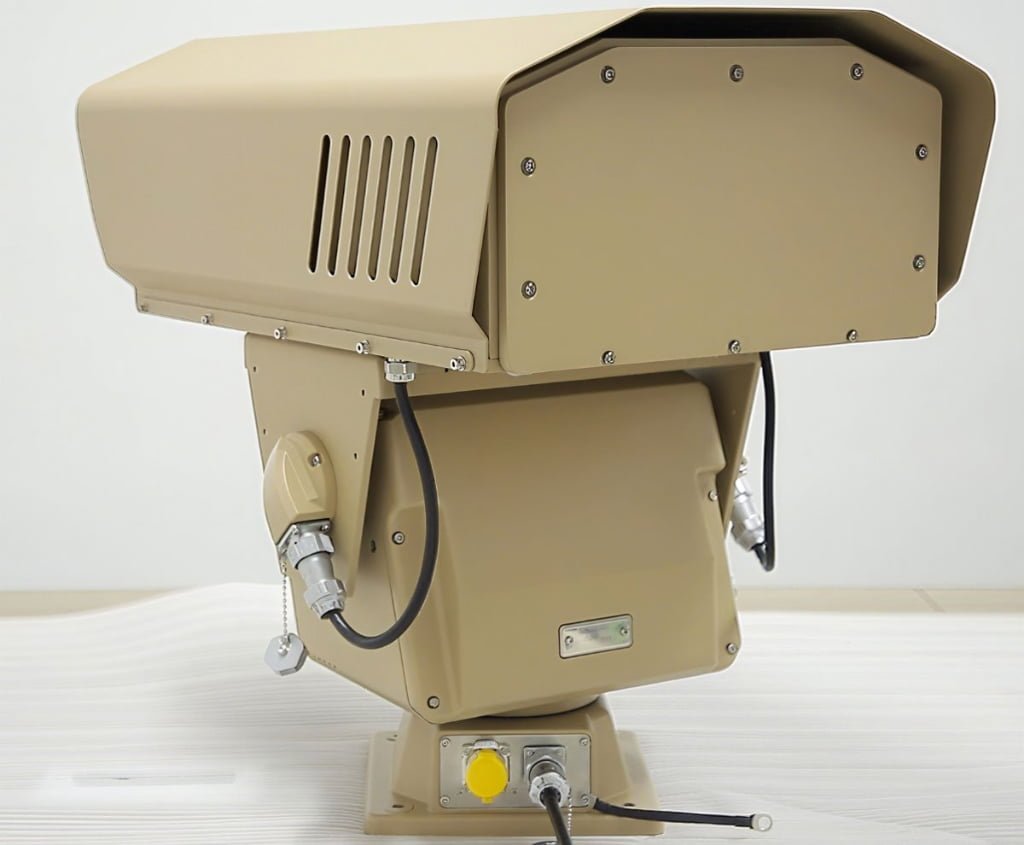

Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security
Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security

Heavy Duty Pan Tilt Head for Long-Range Night Surveillance and Critical Infrastructure Security

Model: T-D30C225-H4286-S5000

The heavy-duty PTZ camera offers a clear value proposition: fewer blind spots, stronger target confirmation at long distance, and a more dependable surveillance platform for high-value, high-risk areas.

This heavy-duty long-range PTZ camera is built for projects where standard pan tilt CCTV cameras cannot deliver enough load capacity, optical reach, or nighttime visibility. Instead of focusing on high-speed tracking, it is engineered for long-distance observation, stable heavy-load operation, and ultra-long-range night surveillance. The system combines a 35kg top-mounted payload platform, an 86x ultra-long zoom visible camera, and a 5000m laser illuminator to cover demanding security environments such as maritime defense, border monitoring, oil and gas facilities, ports, and critical infrastructure.

✔ Heavy-duty outdoor structure
✔ Multi-sensor fusion architecture
✔ 5000m laser night illumination
✔ Rugged all-weather IP66 design

Request Quote View Specs

Key Advantages

01

Designed for heavy-duty, ultra-long-range surveillance rather than short-range rapid tracking.

02

35kg payload supports larger optical, lighting, or integrated monitoring assemblies.

03

86x optical zoom enables clear long-distance target verification in open environments.

04

Worm gear drive and absolute encoder improve durability, accuracy, and preset repeatability.

05

IP66 structure and anti-surge protection suit harsh outdoor and critical infrastructure deployments.

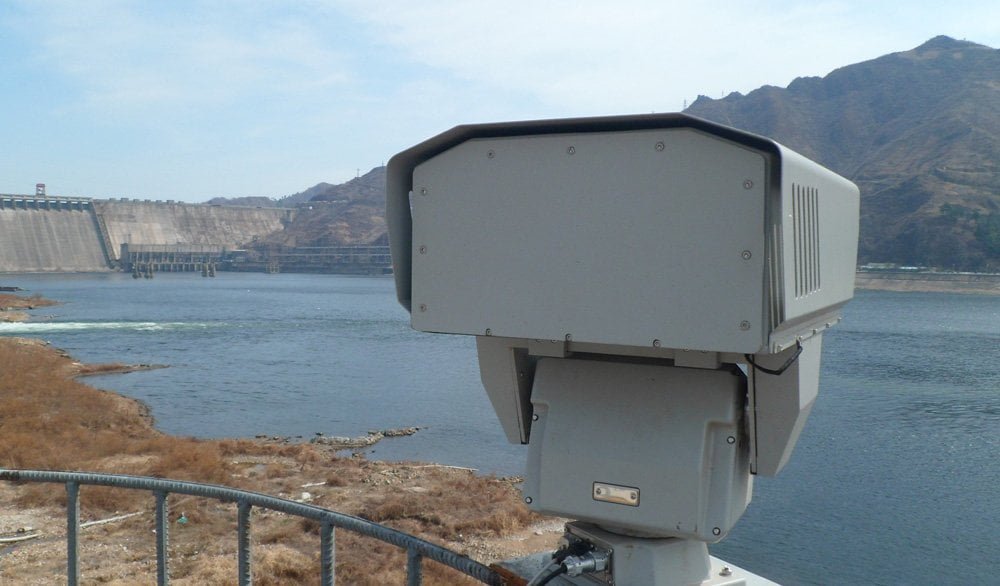

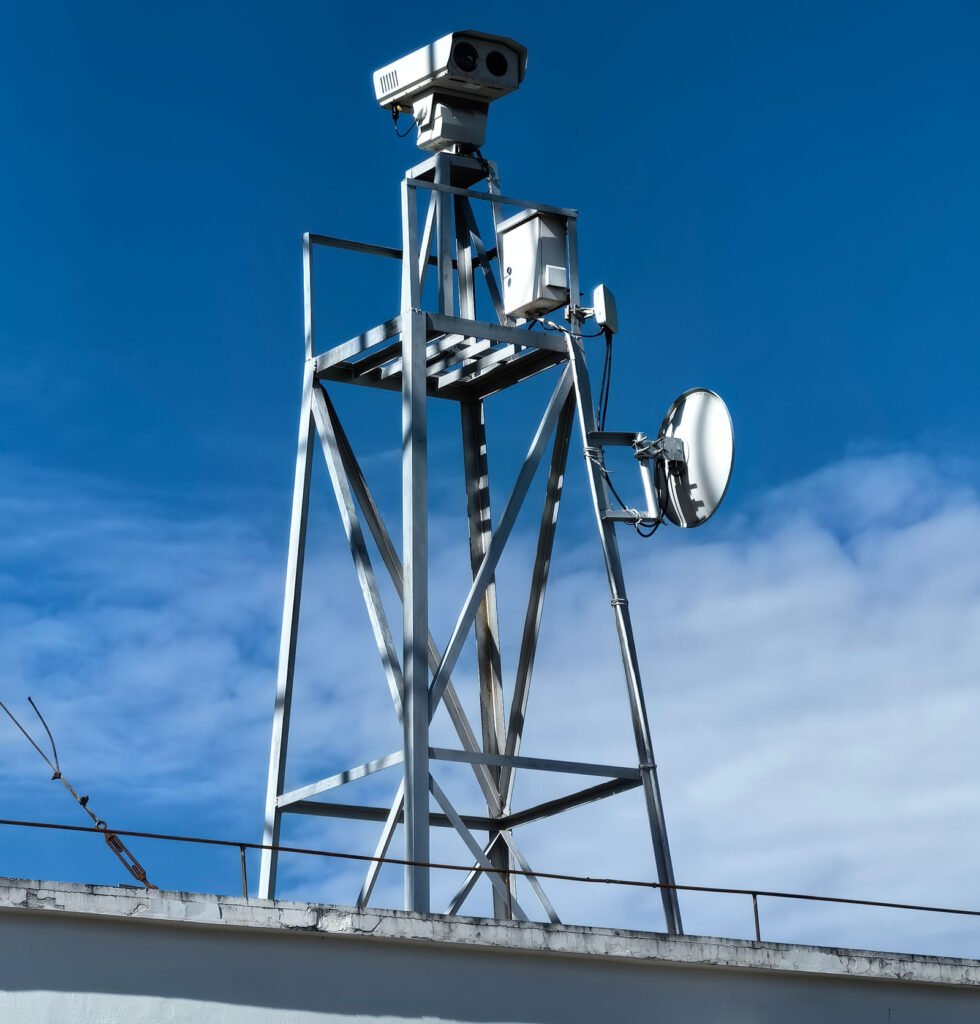

Applications

Coastal and maritime security

Border and perimeter surveillance

Oil and gas fields, substations, and critical infrastructure protection

Industrial parks, plant perimeters, and high-point long-range observation

Technical Specifications

Model: T-D30C225-H4286-S5000

Pan Tilt Motor

Parameter Specification
Max dimensions H 343mm* L 387mm* W 215mm
Transmission form Long life worm gear worm drive
Power supply voltage 24V/48V±20% (Customizable)
Power protection TVS 8000V, anti-lightning and anti-surge, in line with GB/T17626.5 level 4
Rotation range Pan 360° continuous rotation, tilt -55°~+60°
Speed range Pan 0.22°~30°/s, tilt 0.3°~13°/s (Customizable)
Max acceleration
Power consumption ≤5W (Standby),≤100W (Operation)
Angular resolution 0.01°
Repeated positioning accuracy ≤0.05°
Protection level IP66
Operating temperature and humidity -40℃~65℃，＜90% RH

Visible Camera

Module Parameter Specification
Camera Image Sensor 1/1.8″ Progressive Scan CMOS
Lens Focal Length 10~860mm, 86x Optical Zoom
Lens Aperture Range F2.1-F11.2
Compression Standard Video Compression H.265 / H.264 / MJPEG

Laser Supplement Light Parameters

Parameter Specification
effective range 5000 meters
emission wavelength 808±10nm

Frequently Asked Questions

What is this pan tilt zoom camera designed for?
This model is designed for professional wide-area surveillance where users need accurate rotation, stable motion control, and reliable outdoor operation across demanding scenarios such as fire prevention, border monitoring, and coastal defense.
What problem does this product solve?
It helps users solve the common challenges of wide-area outdoor surveillance, including insufficient long-range visibility, unstable positioning, limited payload capacity, and poor compatibility with professional security systems.
Why choose this model instead of a standard PTZ camera?
Because this model is built as a long-range industrial surveillance solution with heavier payload support, integrated laser illumination and ranging, higher positioning precision, and stronger durability for demanding outdoor projects.
What makes this a good industrial PTZ camera for perimeter security?
Its continuous pan, wide tilt range, precise spur gear transmission, fast DMD response, low-power operation, and durable IP66 body make it a practical fit for industrial perimeter and infrastructure surveillance.
